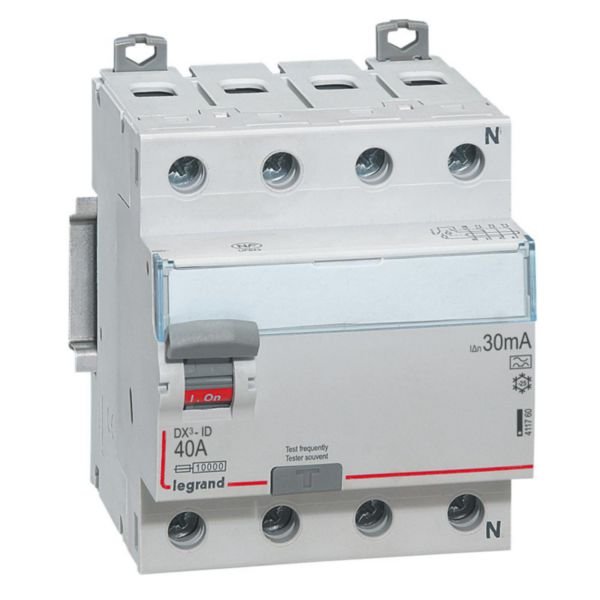

RCD DX³-ID 4P 400V | 40A Rated Current | 30mA Sensitivity | Type A | @EA of 1 | by Legrand
The RCD DX³-ID 4P 400V is a reliable residual current device designed for residential and small commercial electrical panels. With a rated current of 40A and a sensitivity of 30mA, it provides essential protection against electrical hazards. This Type A circuit breaker is ideal for detecting both sinusoidal AC and pulsating DC residual currents, ensuring safety and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD DX³-ID 4P 400V | 40A Rated Current | 30mA Sensitivity | Type A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 411760
Alternatively Known As: Residual Current Device, RCCB, RCD Circuit Breaker, DX3-ID RCD, 4 Pole RCD, Type A Residual Current Breaker
Technical Specifications
- Number of poles: 4
- Rated voltage: 400 V~
- Rated current: 40 A
- Sensitivity: 30 mA
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Short-circuit breaking capacity (Icw): 10 kA
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Degree of protection: IP20
- Mounting method: DIN rail
- Leakage current type: A
- Connection type: Screwed terminal, busbar and cable
- Operating ambient temperature: -25 to 60 °C
- Pollution degree: 2
- Connectable conductor cross section multi-wired: 0.75-35 mm²
- Connectable conductor cross section solid-core: 0.75-50 mm²
- Degree of impact strength: IK04
- Nominal voltage: 320-440 V
- Electric supplying direction: By the top or bottom
- Halogen free: Yes
- Dimensions (H x L x W): 83mm x 78mm x 71mm
- Weight: 0.3 kg
Key Features
- 4-pole residual current circuit breaker with neutral on right-hand side
- Rated current of 40 A and sensitivity of 30 mA
- Type A detection for sinusoidal AC and pulsating DC residual currents
- Conforms to IEC 61008-1 and IEC 62423 standards
- Compatible with prong-type and fork-type supply busbars
- Enhanced immunity to unwanted tripping in disturbed environments
- Can detect high frequency fault currents
- Equipped with interlocking device
- Mounting on DIN rail
- Halogen free and IP20 degree of protection
- Screwed terminal, busbar and cable connection types
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical panel.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Residual current protection in distribution boards
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires and reduces electrical hazards, contributing to safer energy use
- Halogen-free materials reduce environmental impact in case of disposal
Warranty Information
Standard manufacturer warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand RCD DX³-ID 4P 400V Type A Residual Current Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
