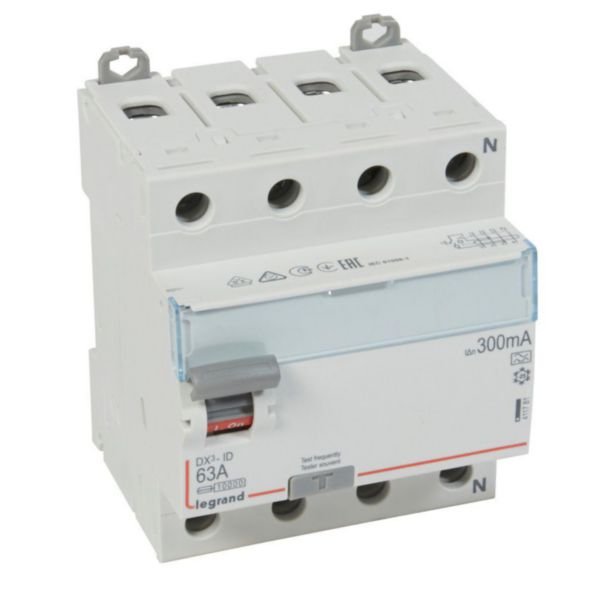

RCD DX³-ID 4P 400V | 63A Rated Current | 300mA Sensitivity | Type A | @EA of 1 | by Legrand
The RCD DX³-ID 4P 400V is a reliable residual current device designed for electrical safety in residential and small commercial panels. With a rated current of 63A and a sensitivity of 300mA, it effectively protects against electrical shocks and fires. This Type A RCD features a neutral on the right-hand side and is compliant with IEC standards, ensuring safe and efficient operation in various installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD DX³-ID 4P 400V | 63A Rated Current | 300mA Sensitivity | Type A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 411781
Alternatively Known As: Residual Current Device, RCCB, RCD Circuit Breaker, Type A RCD, 4 Pole RCD, 63 Amp RCD
Technical Specifications
- Number of poles: 4
- Rated voltage: 400 V AC
- Rated current: 63 A
- Rated fault current sensitivity: 300 mA
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Mounting method: DIN rail
- Leakage current type: A
- Short-circuit breaking capacity (Icw): 10 kA
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Degree of protection: IP20
- Width in modular spacings: 4
- Built-in depth: 44 mm
- Operating ambient temperature: -25 to 60 °C
- Pollution degree: 2
- Connectable conductor cross section multi-wired: 0.75-35 mm²
- Connectable conductor cross section solid-core: 0.75-50 mm²
- Colour: Grey (RAL 7035)
- Degree of impact strength: IK04
- Storage temperature: -40 to 70 °C
- Nominal voltage: 220-440 V
- Electric supplying direction: By the top or bottom
- Terminal marking indication: Yes
- Stress test conformity (1000V): Yes
- Halogen free: Yes
- Connection type: Screwed terminal, Busbar and cable
- Label space/information surface: Yes
- Dimensions (H x L x W): 83mm x 78mm x 71mm
- Weight: 0.5 kg
Key Features
- 4-pole residual current circuit breaker with neutral on right-hand side
- Rated current: 63 A
- Sensitivity: 300 mA
- Type A leakage current detection (sinusoidal AC and pulsating DC)
- Conforms to IEC 61008-1 and IEC 62423 standards
- Compatible with prong-type and fork-type supply busbars
- Short-circuit breaking capacity: 10 kA
- Mounting on DIN rail
- IP20 degree of protection
- Halogen free
- With interlocking device
- Screwed terminal, busbar and cable connection types
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Residual current protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and shocks
- Halogen-free materials reduce environmental impact in case of disposal
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand RCD DX³-ID 4P 400V 63A 300mA Type A Residual Current Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
