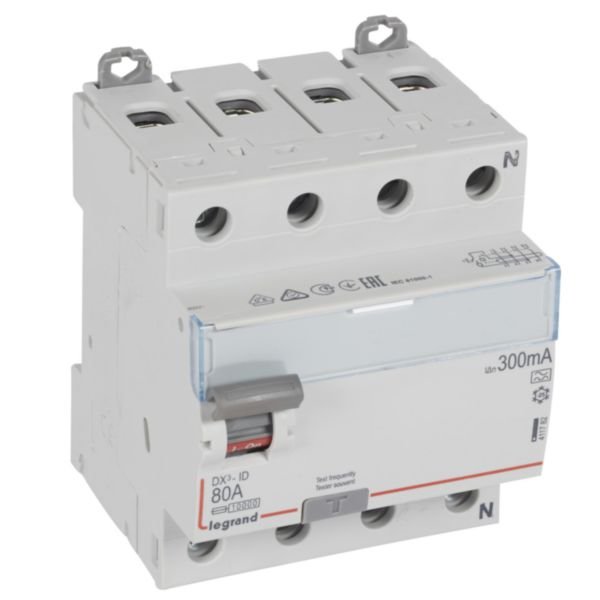

RCD DX³-ID 4P 400V | 80A & 300mA Type A | Neutral Right Hand Side | @EA of 1 | by Legrand
The RCD DX³-ID 4P 400V is a reliable residual current device designed for residential and small commercial electrical panels. With a rated current of 80A and a sensitivity of 300mA, it ensures optimal protection against electrical hazards. This Type A device detects both sinusoidal AC and pulsating DC leakage currents, making it ideal for various applications while conforming to IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD DX³-ID 4P 400V | 80A & 300mA Type A | Neutral Right Hand Side | @EA of 1 | by Legrand
Brand: Legrand
SKU: 411782
Alternatively Known As: Residual Current Device, RCD, Residual Current Circuit Breaker, RCCB, DX3 RCD, Type A RCD 80A 300mA
Technical Specifications
- Number of poles: 4
- Rated voltage: 400 V~
- Rated current: 80 A
- Sensitivity: 300 mA
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Short-circuit breaking capacity (Icw): 10 kA
- Surge current capacity: 0.25 kA
- Frequency: 50 Hz
- Degree of protection: IP20
- Pollution degree: 2
- Connectable conductor cross section multi-wired: 0.75-35 mm²
- Connectable conductor cross section solid-core: 0.75-50 mm²
- Degree of impact strength (IK): IK04
- Operating ambient temperature: -25 to 60 °C
- Storage temperature: -40 to 70 °C
- Nominal voltage: 220-440 V
- Connection type: Screwed terminal, Busbar and cable
- Mounting method: DIN rail
- Leakage current type: A
- With interlocking device: Yes
- Electric supplying direction: By the top or bottom
- Terminal marking indication: Yes
- Halogen free: Yes
- Dimensions (H x L x W): 83mm x 78mm x 71mm
- Weight: 0.5 kg
Key Features
- 4-pole residual current device with neutral on right-hand side
- Rated current of 80 A and sensitivity of 300 mA
- Type A leakage current detection (sinusoidal AC and pulsating DC)
- Conforms to IEC 61008-1 and IEC 62423 standards
- Compatible with prong-type and fork-type supply busbars
- Enhanced immunity to unwanted tripping in disturbed environments
- Can detect high frequency fault currents
- Equipped with interlocking device
- Mounting on DIN rail
- IP20 degree of protection
- Halogen free construction
- Screwed terminal, busbar and cable connection types
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical panel.
Applications
- Residential electrical panels
- Small commercial electrical panels
- Residual current protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires and hazards by detecting leakage currents
- Halogen free materials reduce environmental impact in case of disposal
- Enhances electrical safety reducing risk of damage and waste
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand RCD DX³-ID 4P 400V Neutral Right Hand Side 80A 300mA Type A Residual Current Device is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
