RCD Horizontal 20A 10mA | High-Sensitivity Trip | 2 Pole Configuration | by Clipsal

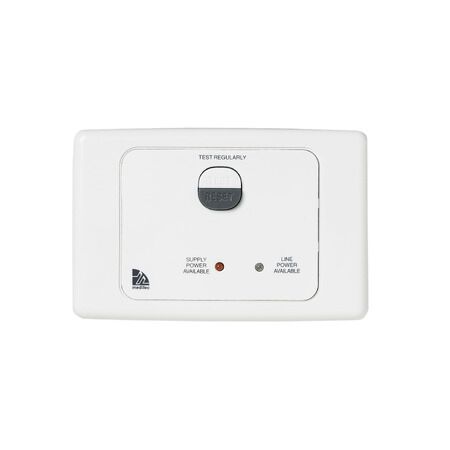

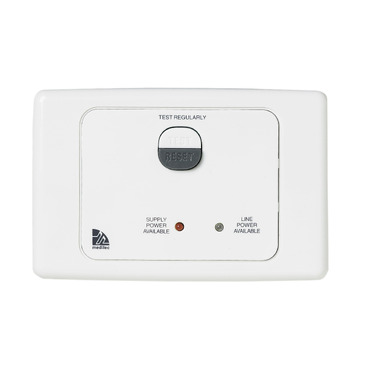

The RCD Horizontal 20A 10mA is a high-sensitivity residual current device designed for medical and sensitive environments. With a 10mA trip threshold and 2 pole configuration, it ensures optimal protection for patients and equipment. Ideal for hospitals, clinics, and laboratories, this device enhances electrical safety and complies with stringent safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD Horizontal 20A 10mA | High-Sensitivity Trip | 2 Pole Configuration | by Clipsal
Brand: Clipsal
SKU: MEDML2031RC10RD
Alternatively Known As: Medical RCD, Clipsal Medilec RCD, 20A 10mA RCD, Residual Current Circuit Breaker, MEDML2031RC10RD
Technical Specifications
- Type: Residual Current Device (RCD)
- Current Rating: 20A
- Sensitivity: 10mA
- Poles: 2
- Mounting: Horizontal
- Series: Medilec
- Voltage: 230/240V AC
- Frequency: 50Hz
- Trip Type: High-sensitivity for medical applications
- Dimensions (H x L x W): 115mm x 75mm x 75mm
- Weight: 0.25 kg
Key Features
- Residual Current Device (RCD) for enhanced electrical safety
- 20A current rating suitable for medical and sensitive environments
- 10mA high-sensitivity trip threshold for patient and equipment protection
- Horizontal mounting design for streamlined installation
- 2 pole configuration for comprehensive circuit protection
- Medilec series designed for medical-grade applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Medical facilities: hospitals, clinics, dental surgeries
- Commercial buildings requiring high-sensitivity RCD protection
- Laboratories and healthcare environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and accidents
- Supports compliance with safety standards in sensitive environments
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Medilec RCD Horizontal 20A 10mA (MEDML2031RC10RD) is available for immediate purchase. Ideal for medical, healthcare, and commercial applications requiring high-sensitivity RCD protection.
