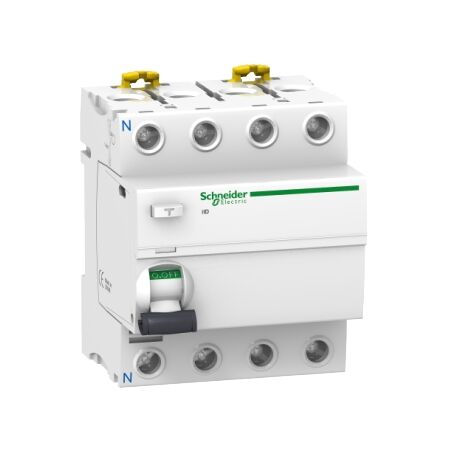

RCD IID 100A 300mA 4P Type A | 8 Module Width | DIN Rail Mountable | by Clipsal
The RCD IID 100A 300mA 4P Type A is designed for effective earth leakage protection in commercial, industrial, and residential switchboards. With a sensitivity of 300mA and a high breaking capacity of 10kA, this DIN rail mountable device ensures safety against electrical faults. Ideal for licensed electricians, it features a test button for regular safety checks, making it a reliable choice for any electrical installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 100A 300mA 4P Type A | 8 Module Width | DIN Rail Mountable | by Clipsal
Brand: Clipsal
SKU: SCHA9R25491
Alternatively Known As: 100A RCD, 4 Pole RCD, Type A Residual Current Device, Clipsal SCHA9R25491, Earth Leakage Circuit Breaker, 300mA RCD, DIN Rail RCD
Technical Specifications
- Rated current: 100A
- Rated residual operating current: 300mA
- Number of poles: 4
- Type: A (detects AC and pulsating DC faults)
- Mounting: DIN rail
- Breaking capacity: 10kA
- Voltage: 400V AC
- Frequency: 50/60Hz
- Test button: Yes
- Dimensions (H x L x W): 85mm x 75mm x 144mm
- Weight: 0.6 kg
Key Features
- Rated current: 100A
- Sensitivity: 300mA
- 8 module width (8MO)
- 4 pole (4P) configuration
- Type A RCD: detects both AC and pulsating DC earth leakage currents
- High breaking capacity
- DIN rail mountable
- Test button for regular safety checks
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial switchboards
- Residential main switchboards
- Protection of electrical circuits against earth leakage faults
- Suitable for use in distribution boards and panel boards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Supports safe and reliable power distribution, minimizing electrical hazards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD IID 100A 300mA 8MO 4P Type A (SCHA9R25491) is available for immediate purchase. Ideal for commercial, industrial, and residential switchboard applications requiring reliable earth leakage protection.
