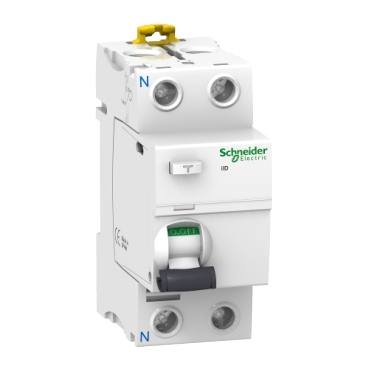

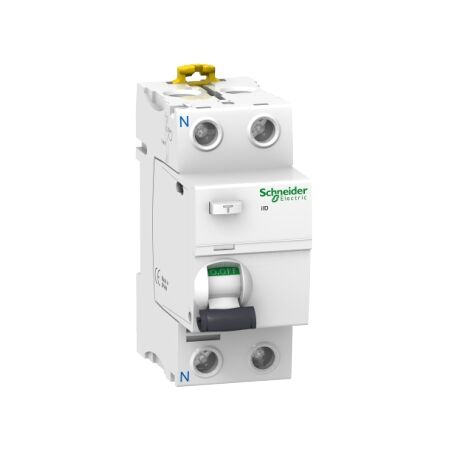

RCD IID 100A 300mA Type A | 4 Module DIN Rail Mount | Earth Leakage Protection | by Clipsal
The RCD IID 100A 300mA Type A is designed for effective earth leakage protection, detecting both AC and pulsating DC faults. With a 4 module DIN rail mount design, it's perfect for residential and commercial electrical distribution boards, ensuring safety against electric shock and fire hazards. Built for compliance with Australian standards, this device is essential for any electrical installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 100A 300mA Type A | 4 Module DIN Rail Mount | Earth Leakage Protection | by Clipsal
Brand: Clipsal
SKU: SCHA9R25291
Alternatively Known As: 100A RCD, 300mA Residual Current Device, Type A RCD, Clipsal SCHA9R25291, 4 Module RCD, Earth Leakage Circuit Breaker
Technical Specifications
- Rated current: 100A
- Rated residual operating current: 300mA
- Type: A (detects AC and pulsating DC faults)
- Number of modules: 4 (DIN rail mount)
- Voltage: 230/400V AC
- Frequency: 50/60Hz
- Breaking capacity: 10kA
- Operating temperature: -25°C to +40°C
- IP20 protection (when installed in enclosure)
- Dimensions (H x L x W): 90mm x 75mm x 72mm
- Weight: 0.45 kg
Key Features
- Type A RCD detects both AC and pulsating DC earth leakage currents
- Rated current: 100A
- Sensitivity: 300mA
- 4 module DIN rail mount design
- Provides protection against electric shock and fire hazards
- Suitable for use in a wide range of electrical installations
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Residential and commercial electrical distribution boards
- Industrial switchboards
- Protection of circuits against earth leakage faults
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008.1 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and accidents
- Supports safe and efficient energy use in buildings
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for use in residential, commercial, and industrial electrical distribution boards to provide essential earth leakage protection.
