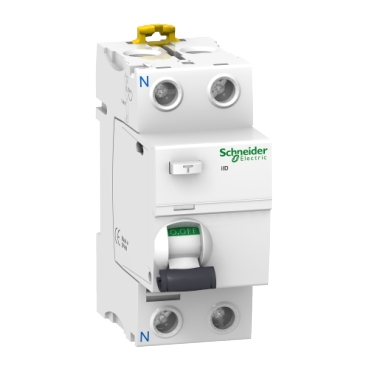

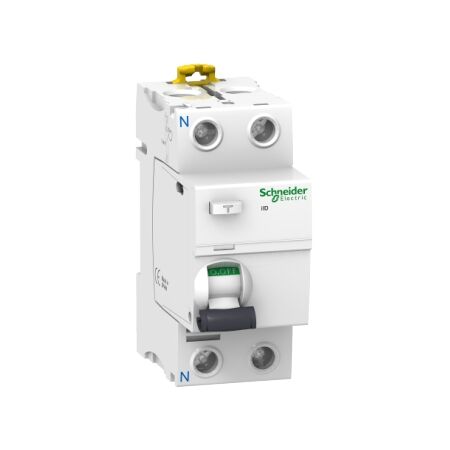

RCD IID 100A 30mA 4Mod 2P Type A | Earth Leakage Protection | DIN Rail Mount | by Clipsal
The RCD IID 100A 30mA 4Mod 2P Type A is designed for effective earth leakage protection in residential, commercial, and light industrial applications. With a rated current of 100A and a sensitivity of 30mA, this device ensures safety against AC and pulsating DC fault currents. Ideal for installation in main switchboards and distribution boards, it complies with AS/NZS standards for enhanced electrical safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 100A 30mA 4Mod 2P Type A | Earth Leakage Protection | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9R21291
Alternatively Known As: 100A RCD, 30mA Residual Current Device, Clipsal 2 Pole RCD, Type A RCD, SCHA9R21291
Technical Specifications
- Rated current: 100A
- Rated residual operating current: 30mA
- Number of poles: 2
- Type: A (detects AC and pulsating DC earth leakage)
- Mounting: 4 module DIN rail
- Rated voltage: 230/400V AC
- Frequency: 50Hz
- Short-circuit capacity: 6kA
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 0.35 kg
Key Features
- Rated current: 100A
- Sensitivity: 30mA
- 2 pole (2P) configuration
- Type A RCD for AC and pulsating DC fault currents
- 4 module DIN rail mounting
- Provides earth leakage protection for circuits
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential: Main switchboards, sub-boards, and distribution boards
- Commercial: Offices, retail, and hospitality switchboards
- Industrial: Light industrial switchboards requiring earth leakage protection
Standards & Compliance
- Complies with AS/NZS 61008.1 for residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs).
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and accidents.
- Supports compliance with modern safety standards, promoting safer environments.
Warranty Information
12 months manufacturer's warranty.
Available Now
The Clipsal RCD IID 100A 30mA 4Mod 2P TY A (SCHA9R21291) is available for immediate purchase. Ideal for residential, commercial, and light industrial switchboard applications requiring reliable earth leakage protection.
