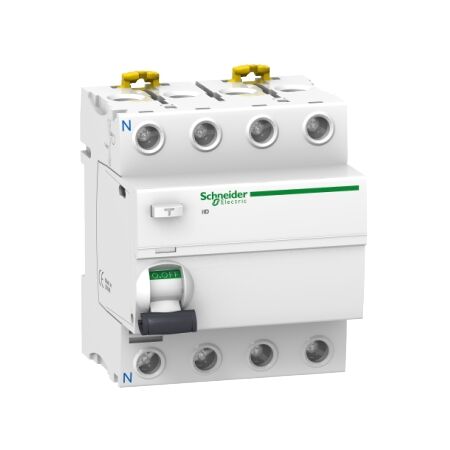

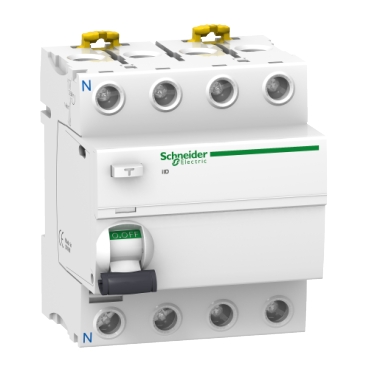

RCD IID 100A 30mA 4P Type A | 8 Module Width | Earth Leakage Protection | by Clipsal
The RCD IID 100A 30mA 4P Type A is designed for reliable earth leakage protection in residential and commercial electrical systems. With a sensitivity of 30mA and a robust 4-pole configuration, it effectively detects AC and pulsating DC faults, ensuring safety against electric shock. Ideal for new installations and retrofits, this device complies with Australian safety standards and is perfect for use in distribution boards and industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 100A 30mA 4P Type A | 8 Module Width | Earth Leakage Protection | by Clipsal
Brand: Clipsal
SKU: SCHA9R21491
Alternatively Known As: 100A RCD, 4 Pole RCD, Type A RCD, Residual Current Device 100A, Clipsal SCHA9R21491, 8 Module RCD, Earth Leakage Circuit Breaker
Technical Specifications
- Rated current: 100A
- Rated residual operating current: 30mA
- Number of poles: 4 (3P+N)
- Type: A (detects AC and pulsating DC earth leakage)
- Mounting: DIN rail, 8 module width
- Voltage: 400V AC
- Frequency: 50Hz
- Trip time: ≤300ms at rated residual current
- Operating temperature: -25°C to +40°C
- Dimensions (H x L x W): 90mm x 75mm x 144mm
- Weight: 0.6 kg
Key Features
- Rated current: 100A
- Sensitivity: 30mA
- 8 module width for DIN rail mounting
- 4 pole (3 phase + neutral) configuration
- Type A RCD for AC and pulsating DC fault currents
- Provides earth leakage protection to prevent electric shock
- Complies with Australian safety standards
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial electrical distribution boards
- Industrial switchboards
- Protection of circuits against earth leakage faults
- Suitable for use in new installations and retrofits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008 – Residual Current Operated Circuit-Breakers Without Integral Overcurrent Protection for Household and Similar Uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Supports compliance with modern safety standards, promoting safer environments
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD IID 100A 30mA 8Mod 4P TY A (SCHA9R21491) is available for immediate purchase. Ideal for residential, commercial, and industrial electrical safety applications.
