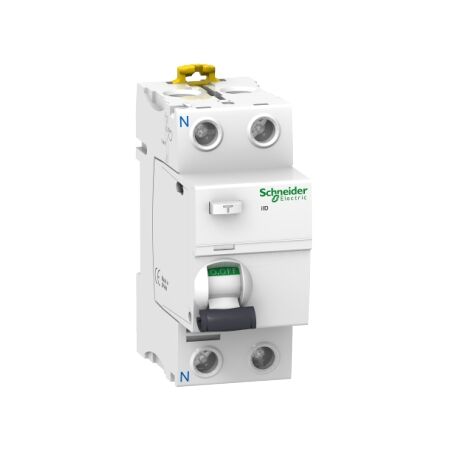

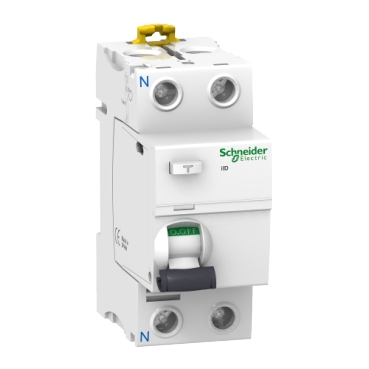

RCD IID 40A 30mA 2 Pole Type A | Acti9 iID Series | DIN Rail Mount | by Clipsal
RCD IID 40A 30mA 2 Pole Type A is designed for effective earth leakage protection in residential, commercial, and light industrial applications. This reliable residual current circuit breaker (RCCB) features a 2P configuration and is part of the Acti9 iID series, ensuring safety and compliance with AS/NZS standards. Ideal for installation in switchboards, it enhances electrical safety and minimizes risks of electrical fires.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 40A 30mA 2 Pole Type A | Acti9 iID Series | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9R51240
Alternatively Known As: RCCB 40A 30mA, Residual Current Device 2 Pole, Clipsal Acti9 iID RCD, Earth Leakage Circuit Breaker, SCHA9R51240
Technical Specifications
- Type: Residual Current Circuit Breaker (RCCB)
- Series: Acti9 iID
- Poles: 2P (2 Pole)
- Rated Current: 40A
- Rated Residual Operating Current: 30mA
- Sensitivity: Type A (AC and pulsating DC detection)
- Mounting: DIN rail, 4 module width
- Rated Voltage: 230/240V AC
- Frequency: 50/60Hz
- Short-circuit capacity: 6kA
- Operating temperature: -25°C to +40°C
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 0.25 kg
Key Features
- Residual current circuit breaker (RCCB) for earth leakage protection
- 2 pole (2P) configuration for single phase applications
- Rated current: 40A
- Rated residual operating current: 30mA
- Type A: Detects AC and pulsating DC residual currents
- 4 module width for standard DIN rail mounting
- Acti9 iID series for reliable performance
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential: Home electrical distribution boards
- Commercial: Offices, retail, and hospitality switchboards
- Industrial: Light industrial switchboards requiring earth leakage protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and accidents
- Supports safe and reliable power distribution, minimizing downtime and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD IID 40A 30mA 2 Pole Type A (SCHA9R51240) is available for immediate purchase. Ideal for residential, commercial, and light industrial switchboard applications requiring reliable earth leakage protection.
