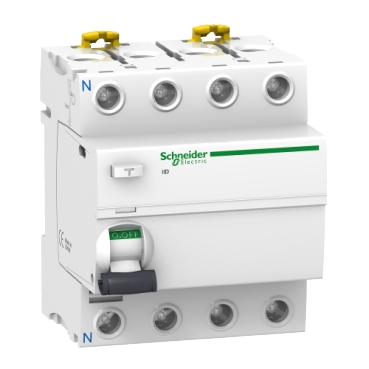

RCD IID 40A 30mA 8Mod 4P Type A | Earth Leakage Protection | DIN Rail Mount | by Clipsal
The RCD IID 40A 30mA 8Mod 4P Type A is designed for effective earth leakage protection in residential and commercial switchboards. With a sensitivity of 30mA and a 4-pole configuration, it ensures safety against AC and pulsating DC faults. Ideal for licensed electricians, this device complies with the latest safety standards, making it a reliable choice for industrial electrical distribution panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 40A 30mA 8Mod 4P Type A | Earth Leakage Protection | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9R51440
Alternatively Known As: Residual Current Device, RCD 40A 30mA, 4 Pole RCD, Type A RCD, Clipsal SCHA9R51440, Earth Leakage Circuit Breaker
Technical Specifications
- Rated current: 40A
- Rated residual operating current: 30mA
- Type: A (detects AC and pulsating DC earth leakage)
- Number of poles: 4
- Mounting: DIN rail, 8 modules
- Rated voltage: 400V AC
- Frequency: 50Hz
- Operating temperature: -25°C to +40°C
- IP20 (when installed in enclosure)
- Dimensions (H x L x W): 85mm x 75mm x 144mm
- Weight: 0.5 kg
Key Features
- Rated current: 40A
- Sensitivity: 30mA
- Type A RCD for AC and pulsating DC fault currents
- 4 pole (4P) configuration
- 8 module DIN rail mount
- Provides earth leakage protection
- Complies with latest safety standards
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial switchboards
- Industrial electrical distribution panels
- Protection of final sub-circuits against earth leakage faults
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008.1 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards
- Supports safe and reliable power distribution, minimizing downtime and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD IID 40A 30mA 8Mod 4P Type A (SCHA9R51440) is available for immediate purchase. Ideal for residential, commercial, and industrial switchboard applications requiring reliable earth leakage protection.
