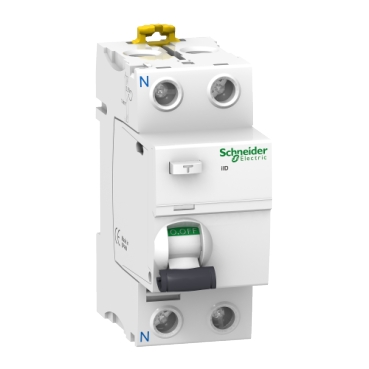

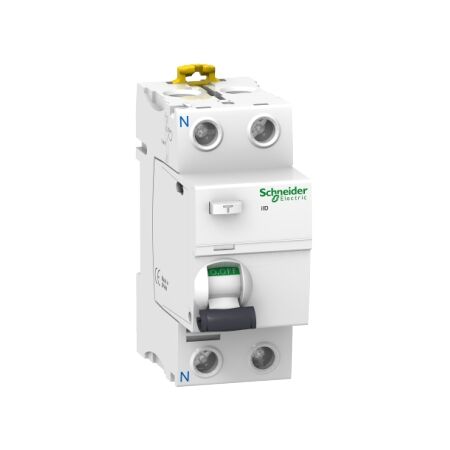

RCD IID 63A 300mA 2P Type A | Fast Tripping Response | DIN Rail Mount | @Pack of 1 | by Clipsal
The RCD IID 63A 300mA 2P Type A is a vital Residual Current Device designed for enhanced electrical safety in residential and commercial switchboards. With a fast tripping response to earth leakage faults and a 4-module width for easy DIN rail mounting, it ensures reliable protection against electrical hazards. Ideal for licensed electricians, this device complies with AS/NZS standards, making it a trusted choice for various electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 63A 300mA 2P Type A | Fast Tripping Response | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9R25263
Alternatively Known As: Clipsal RCD 63A, Residual Current Device 63A, 2 Pole RCD 300mA, Type A RCD, SCHA9R25263, Clipsal Earth Leakage Circuit Breaker
Technical Specifications
- Rated current: 63A
- Rated residual operating current: 300mA
- Number of poles: 2
- Type: A (detects AC and pulsating DC earth leakage)
- Mounting: DIN rail, 4 module width
- Tripping time: ≤300ms at rated residual current
- Rated voltage: 230/400V AC
- Frequency: 50/60Hz
- Operating temperature: -25°C to +40°C
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 0.35 kg
Key Features
- Residual Current Device (RCD) for enhanced electrical safety
- Rated current: 63A
- Sensitivity: 300mA
- 2 pole (2P) configuration
- Type A: Detects AC and pulsating DC earth leakage currents
- 4 module width for DIN rail mounting
- Fast tripping response to earth leakage faults
- Suitable for use in a wide range of electrical installations
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial switchboards
- Industrial electrical distribution boards
- Protection of final sub-circuits against earth leakage faults
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Improves electrical safety, reducing risk of electrical fires and accidents
- Supports compliance with modern safety standards, promoting safer environments
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD IID 63A 300mA 4Mod 2P Type A (SCHA9R25263) is available for immediate purchase. Ideal for residential, commercial, and industrial switchboard applications requiring reliable earth leakage protection.
