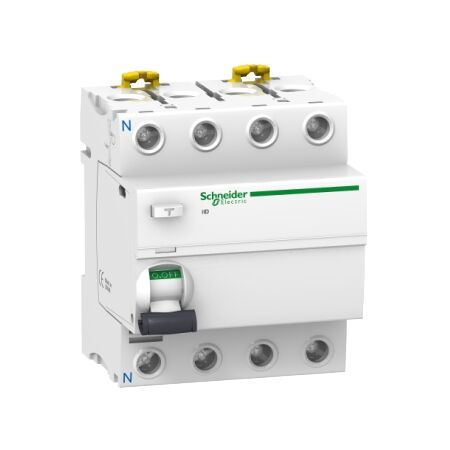

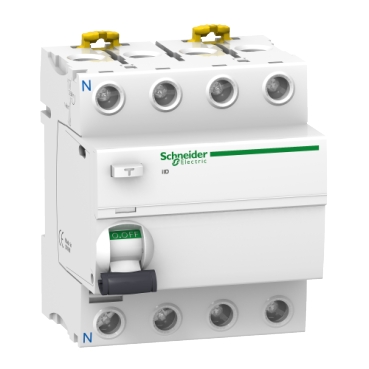

RCD IID 63A 300mA 4Mod 4P | Type A | Selective Tripping | DIN Rail Mount | @Pack of 1 | by Clipsal
RCD IID 63A 300mA 4Mod 4P is a reliable residual current device designed for earth leakage protection in residential and commercial applications. With a 4-pole design and Type A sensitivity, it effectively detects AC and pulsating DC faults. Ideal for use in switchboards, this device ensures compliance with safety standards while providing selective tripping for enhanced safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 63A 300mA 4Mod 4P | Type A | Selective Tripping | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9R25463
Alternatively Known As: RCCB 63A 4 Pole, Residual Current Device 63A, Clipsal Acti9 iID 63A, Earth Leakage Circuit Breaker 63A, SCHA9R25463
Technical Specifications
- Rated current: 63A
- Number of poles: 4 (3 phase + neutral)
- Rated residual operating current: 300mA
- Type: A (detects AC and pulsating DC earth leakage)
- Tripping characteristic: Selective (time-delayed)
- Mounting: DIN rail, 4 modules wide
- Series: Acti9 iID
- Reference: SCHA9R25463
- Dimensions (H x L x W): 85mm x 75mm x 72mm
- Weight: 0.45 kg
Key Features
- Residual current circuit breaker (RCCB) for earth leakage protection
- 4 pole (4P) design for three-phase and neutral applications
- Rated current: 63A
- Rated residual operating current: 300mA
- Type A sensitivity for AC and pulsating DC fault currents
- Selective (time-delayed) tripping for discrimination with downstream devices
- Acti9 iID series for reliable performance
- 4 module width for DIN rail mounting
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial electrical distribution boards
- Industrial switchboards
- Protection of circuits against earth leakage faults
- Suitable for use in lighting, power, and general electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and accidents
- Supports compliance with modern safety standards, promoting safer environments
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for use in residential, commercial, and industrial switchboards requiring reliable earth leakage protection.
