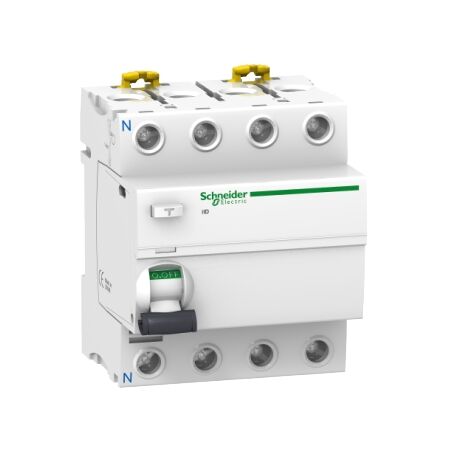

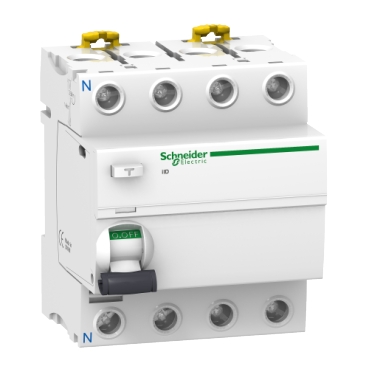

RCD IID 63A 300mA 4P | Acti9 iID Series | Selective Protection | @Pack of 1 | by Clipsal
RCD IID 63A 300mA 4P is a reliable residual current circuit breaker designed for earth leakage protection. Ideal for commercial, industrial, and residential applications, it features a 4-pole configuration and high immunity to nuisance tripping. With a sensitivity of 300mA and compliance with AS/NZS standards, this device ensures enhanced electrical safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 63A 300mA 4P | Acti9 iID Series | Selective Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9R35463
Alternatively Known As: RCCB 63A 4 Pole, Acti9 iID RCD, Residual Current Device 63A, Clipsal SCHA9R35463, 4P 300mA RCD, Selective RCD 8 Module
Technical Specifications
- Type: Residual Current Circuit Breaker (RCCB)
- Series: Acti9 iID
- Poles: 4P
- Rated Current: 63A
- Sensitivity: 300mA
- Type: A-SI (Selective, Immunised)
- Mounting: DIN rail, 8 modules
- Rated voltage: 400V AC
- Frequency: 50/60Hz
- Short-circuit resistance: 10kA
- Operating temperature: -25°C to +40°C
- Dimensions (H x L x W): 85mm x 75mm x 144mm
- Weight: 0.6 kg
Key Features
- Residual current circuit breaker (RCCB) for earth leakage protection
- Acti9 iID series for reliable performance
- 4 pole (4P) configuration
- Rated current: 63A
- Sensitivity: 300mA
- A-SI type for selective protection
- 8 module width for DIN rail mounting
- High immunity to nuisance tripping
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards for enhanced safety
- Protection of circuits against earth leakage faults
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and accidents
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD IID 63A 300mA 8M 4P TY ASI (SCHA9R35463) is available for immediate purchase. Ideal for commercial, industrial, and residential electrical safety applications.
