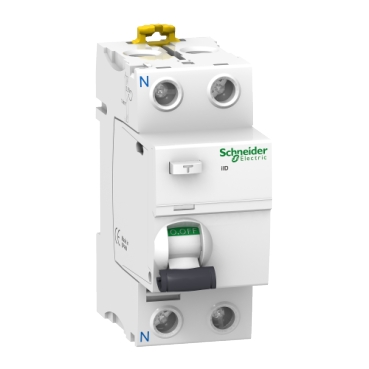

RCD IID 63A 30mA 2P Type A | 4 Module Width | AC & Pulsating DC Protection | @Pack of 1 | by Clipsal
The RCD IID 63A 30mA 2P Type A is designed for effective electrical protection, detecting both AC and pulsating DC earth leakage. With a 4 module width for DIN rail mounting, it's perfect for residential and commercial switchboards, ensuring safety against electric shock and fire hazards. This device features a test button for regular safety checks, making it a reliable choice for licensed electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 63A 30mA 2P Type A | 4 Module Width | AC & Pulsating DC Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9R51263
Alternatively Known As: 63A RCD, 30mA Residual Current Device, Clipsal Type A RCD, 2 Pole RCD, SCHA9R51263, 4 Module RCD
Technical Specifications
- Rated current: 63A
- Rated residual operating current: 30mA
- Number of poles: 2
- Type: A (detects AC and pulsating DC earth leakage)
- Mounting: DIN rail, 4 module width
- Voltage: 230/400V AC
- Frequency: 50/60Hz
- Test button: Yes
- Dimensions (H x L x W): 85mm x 75mm x 72mm
- Weight: 0.35 kg
Key Features
- Rated current: 63A
- Sensitivity: 30mA
- 2 pole (2P) configuration
- Type A RCD for AC and pulsating DC fault currents
- 4 module width for DIN rail mounting
- Provides protection against electric shock and fire hazards
- Test button for regular safety checks
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial switchboards
- Industrial electrical distribution boards
- Protection of final sub-circuits against earth leakage faults
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical accidents
- Supports compliance with modern safety standards, promoting safer environments
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD IID 63A 30mA 4Mod 2P Type A (SCHA9R51263) is available for immediate purchase. Ideal for residential, commercial, and industrial electrical protection applications.
