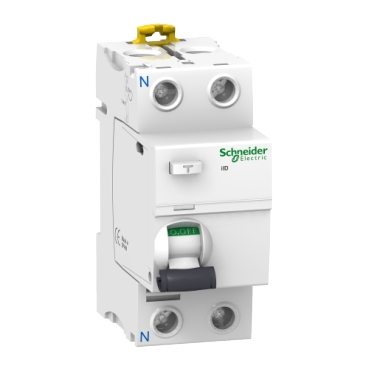

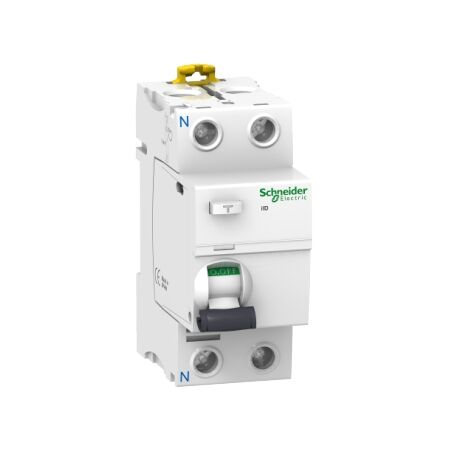

RCD IID 63A 30mA 2P Type A | Fast Tripping Response | DIN Rail Mount | by Clipsal
The RCD IID 63A 30mA 2P Type A is designed for optimal electrical safety, detecting both AC and pulsating DC earth leakage currents. Ideal for residential and commercial switchboards, this device features a fast tripping response and a test button for regular functionality checks, ensuring reliable protection against electric shock and fire hazards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 63A 30mA 2P Type A | Fast Tripping Response | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9R91263
Alternatively Known As: 63A RCD, 30mA Residual Current Device, Clipsal Type A RCD, 2 Pole RCD, SCHA9R91263, 4 Module RCD, Earth Leakage Circuit Breaker
Technical Specifications
- Rated current: 63A
- Residual current: 30mA
- Number of poles: 2
- Type: A (detects AC and pulsating DC faults)
- Mounting: DIN rail, 4 modules
- Rated voltage: 230/400V AC
- Frequency: 50Hz
- Test button: Yes
- Operating temperature: -25°C to +40°C
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 0.35 kg
Key Features
- Rated current: 63A
- Residual current sensitivity: 30mA
- 2 pole (2P) configuration
- Type A RCD: detects AC and pulsating DC earth leakage currents
- 4 module width for DIN rail mounting
- Fast tripping response for enhanced safety
- Test button for regular functionality checks
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial switchboards
- Industrial electrical distribution boards
- Protection of electrical circuits against earth leakage and electric shock
Standards & Compliance
- Complies with AS/NZS 61008.1 for residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Supports safe and efficient energy use in buildings
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD IID 63A 30mA 4Mod 2P Type A (SCHA9R91263) is available for immediate purchase. Ideal for residential, commercial, and industrial electrical safety applications.
