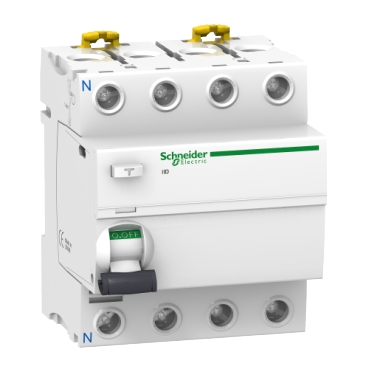

RCD IID 63A 30mA 4P Type A | 8 Module Width | High Breaking Capacity | by Clipsal
RCD IID 63A 30mA 4P Type A is designed for reliable earth leakage protection in residential and commercial switchboards. With a sensitivity of 30mA and a high breaking capacity of 10kA, this device ensures safety against electrical faults. Ideal for licensed electricians, it features a test button for regular safety checks and complies with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 63A 30mA 4P Type A | 8 Module Width | High Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHA9R91463
Alternatively Known As: Residual Current Device, RCD 63A 4 Pole, Earth Leakage Circuit Breaker, Type A RCD, Clipsal SCHA9R91463
Technical Specifications
- Rated current: 63A
- Rated residual operating current: 30mA
- Number of poles: 4 (3P+N)
- Type: A (detects AC and pulsating DC faults)
- Mounting: DIN rail, 8 module width
- Rated voltage: 400V AC
- Breaking capacity: 10kA
- Test button: Yes
- Dimensions (H x L x W): 85mm x 75mm x 144mm
- Weight: 0.6 kg
Key Features
- Rated current: 63A
- Sensitivity: 30mA
- 8 module width for DIN rail mounting
- 4 pole (3 phase + neutral) configuration
- Type A RCD: detects both AC and pulsating DC earth leakage currents
- Test button for regular safety checks
- High breaking capacity for enhanced protection
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial switchboards
- Industrial electrical distribution panels
- Protection of final sub-circuits against earth leakage faults
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and accidents
- Supports safe and efficient energy use in buildings
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD IID 63A 30mA 8Mod 4P TYP A (SCHA9R91463) is available for immediate purchase. Ideal for switchboard upgrades and new installations requiring reliable earth leakage protection.
