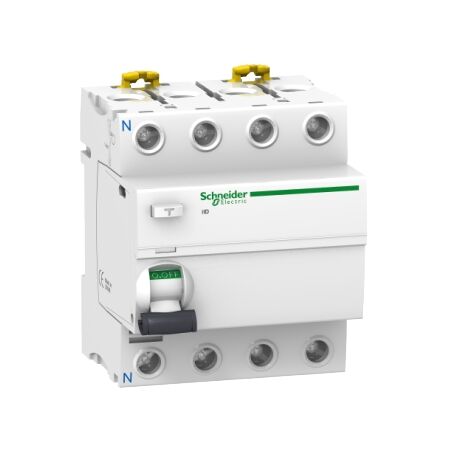

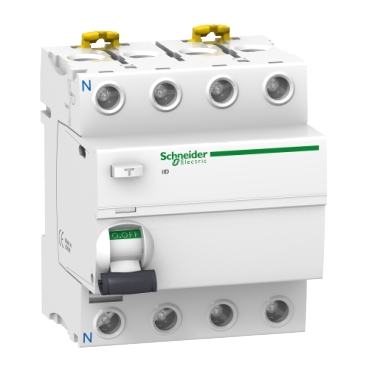

RCD IID 63A 30mA 8Mod 4P Type A | 4 Pole Configuration | Type A for AC & DC Faults | by Clipsal
RCD IID 63A 30mA 8Mod 4P Type A is designed for advanced earth leakage protection in residential and commercial switchboards. With a 4 pole configuration and sensitivity of 30mA, it ensures safety against electrical faults. Ideal for licensed electricians, this device conforms to IEC/EN 61008-1 standards, making it a reliable choice for safe energy distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 63A 30mA 8Mod 4P Type A | 4 Pole Configuration | Type A for AC & DC Faults | by Clipsal
Brand: Clipsal
SKU: SCHA9R51463
Alternatively Known As: RCCB 63A 4P, Residual Current Device 63A, Clipsal Acti9 iID 63A, 4 Pole RCD 30mA, SCHA9R51463
Technical Specifications
- Rated current: 63A
- Number of poles: 4 (3 phase + neutral)
- Sensitivity: 30mA
- Type: A (detects AC and pulsating DC faults)
- Mounting: DIN rail, 8 module width
- Series: Acti9 iID
- Operating voltage: 400V AC
- Breaking capacity: 10kA
- Conforms to IEC/EN 61008-1
- Dimensions (H x L x W): 85mm x 75mm x 144mm
- Weight: 0.6 kg
Key Features
- Residual current circuit breaker (RCCB) for earth leakage protection
- 4 pole (4P) configuration for three-phase and neutral circuits
- Rated current: 63A
- Sensitivity: 30mA for personal protection
- Type A: Detects AC and pulsating DC residual currents
- 8 module width for DIN rail mounting
- Acti9 iID series for reliable performance
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial switchboards
- Industrial electrical distribution panels
- Protection of electrical circuits against earth leakage faults
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Supports safe and reliable energy distribution
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD IID 63A 30mA 8Mod 4P Type A (SCHA9R51463) is available for immediate purchase. Ideal for switchboard upgrades and new installations requiring advanced earth leakage protection.
