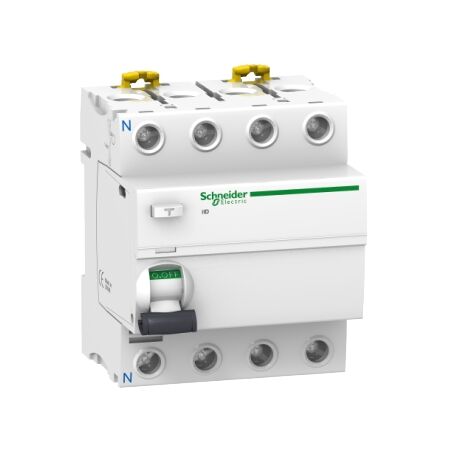

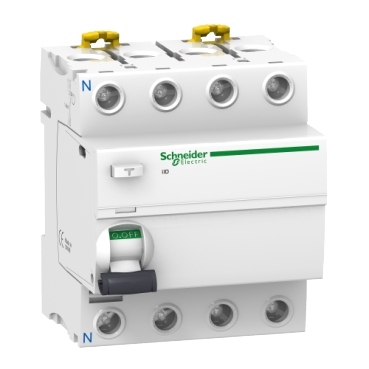

RCD IID 80A 300mA 4P Type A | Earth Leakage Protection | Selective Sensitivity | by Clipsal
RCD IID 80A 300mA 4P Type A is designed for reliable earth leakage protection in commercial and residential switchboards. With a 4-pole configuration and 300mA sensitivity, it ensures safety against AC and pulsating DC faults. Ideal for high-capacity circuits, this device enhances electrical safety and complies with AS/NZS standards, making it perfect for licensed electricians and safety-conscious installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 80A 300mA 4P Type A | Earth Leakage Protection | Selective Sensitivity | by Clipsal
Brand: Clipsal
SKU: SCHA9R25480
Alternatively Known As: RCCB 80A 4P 300mA, Residual Current Circuit Breaker 80A, Clipsal Acti9 iID RCD, SCHA9R25480, 4 Pole RCD Type A, Earth Leakage Circuit Breaker 80A
Technical Specifications
- Rated current: 80A
- Number of poles: 4
- Type: A (detects AC and pulsating DC earth leakage)
- Sensitivity: 300mA
- Selectivity: Selective (S type)
- Mounting: DIN rail, 8 modules
- Rated voltage: 400V AC
- Frequency: 50/60Hz
- Breaking capacity: 10kA
- Operating temperature: -25°C to +40°C
- Dimensions (H x L x W): 85mm x 75mm x 144mm
- Weight: 0.6 kg
Key Features
- Residual Current Device (RCD) for earth leakage protection
- 4 pole configuration for three-phase and neutral applications
- 80A rated current for high-capacity circuits
- Type A sensitivity for AC and pulsating DC fault currents
- 300mA trip sensitivity for selectivity and fire protection
- Selective (S type) for discrimination with downstream RCDs
- Acti9 iID series for reliable performance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards for enhanced safety
- Protection of circuits against earth leakage faults
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Supports compliance with modern safety standards, promoting safer environments
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for commercial, industrial, and residential switchboards requiring reliable earth leakage protection.
