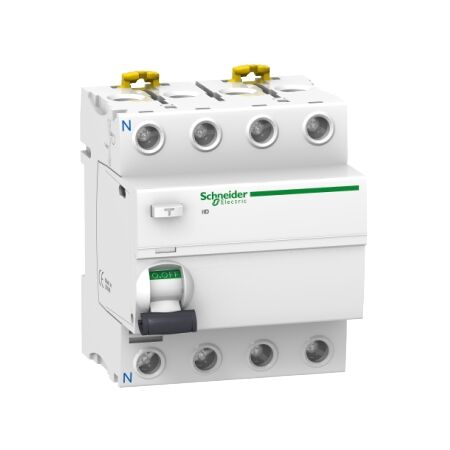

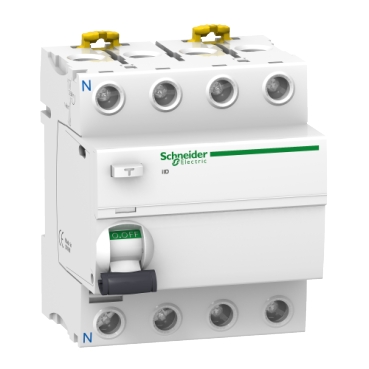

RCD IID 80A 30mA 4P Type A | 8 Module DIN Rail Mount | Earth Leakage Protection | by Clipsal
RCD IID 80A 30mA 4P Type A is designed for reliable earth leakage protection in residential, commercial, and industrial applications. With a 4-pole configuration and 30mA sensitivity, it effectively detects AC and pulsating DC faults, ensuring safety against electric shock and fire hazards. Ideal for installation in switchboards and distribution boards, this device complies with Australian safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD IID 80A 30mA 4P Type A | 8 Module DIN Rail Mount | Earth Leakage Protection | by Clipsal
Brand: Clipsal
SKU: SCHA9R21480
Alternatively Known As: 80A RCD, 4 Pole RCD, Type A Residual Current Device, Clipsal SCHA9R21480, 8 Module RCD, Earth Leakage Circuit Breaker
Technical Specifications
- Rated current: 80A
- Rated residual operating current: 30mA
- Type: A (detects AC and pulsating DC faults)
- Number of poles: 4
- Mounting: DIN rail, 8 modules
- Voltage: 400V AC
- Frequency: 50Hz
- Short-circuit capacity: 6kA
- Operating temperature: -25°C to +40°C
- IP20 protection (when installed in enclosure)
- Dimensions (H x L x W): 90mm x 75mm x 144mm
- Weight: 0.6 kg
Key Features
- Rated current: 80A
- Sensitivity: 30mA
- Type A RCD: Detects AC and pulsating DC earth leakage currents
- 4 pole (4P) configuration for three-phase and neutral protection
- 8 module DIN rail mount design
- Provides protection against electric shock and fire hazards
- Complies with Australian safety standards
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential switchboards
- Commercial electrical distribution boards
- Industrial installations requiring earth leakage protection
- Protection of final sub-circuits and main circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008.1 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Supports safe and reliable power distribution, minimizing electrical waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD IID 80A 30mA 8Mod 4P Type A (SCHA9R21480) is available for immediate purchase. Ideal for residential, commercial, and industrial switchboard applications requiring reliable earth leakage protection.
