RCD/MCB Combination 10A 4.5KA | Single Module | Compact Design by Transco
RCD/MCB combination with 10A current and 4.5KA breaking capacity—ideal for residential and commercial circuit protection. Built for safety, with compact single module design and easy DIN rail installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

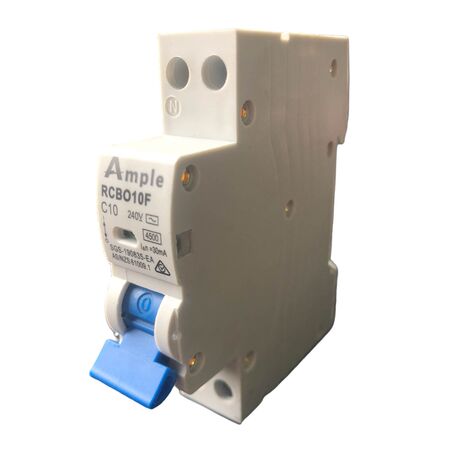

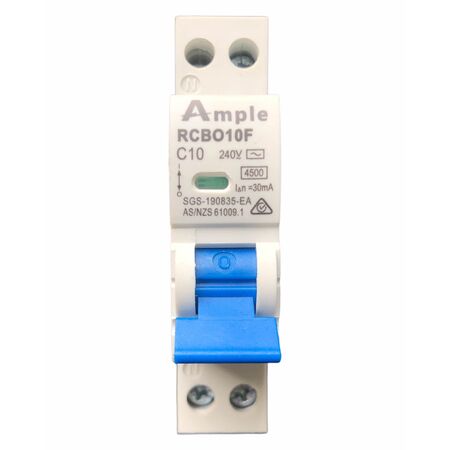

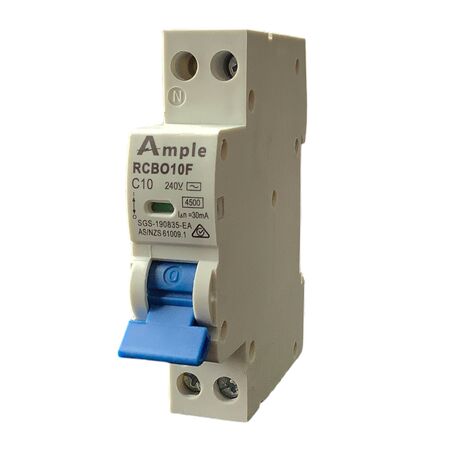

Product Name/Title: RCD/MCB Combination 10A 4.5KA Single Module
Brand: Transco
SKU: RCBO10F
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Rated voltage: 240V ~ 5%
- Frequency: 50/60Hz
- Number of poles: 1P+N
- Rated residual operation current: 30mA (10mA available upon request)
- Mechanical life: 10,000 cycles
- Electrical life: 4,000 cycles
- Installation: On symmetrical DIN rail 35mm panel mounting
- Connection: Pillar terminal with clamp
- Protection degree: IP20
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- Combination of residual current device and circuit breaker in a single module.
- Rated current options: 10A, 16A, 20A, 25A, 32A.
- Breaking capacity of 4,500A.
- Tripping curve C for standard applications.
- Type AC and Type A operating characteristics.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring circuit protection
Standards & Compliance
- Complies with IEC/EN AS/NZS 61009-1 for safety and performance standards.
Environmental Benefits
- Enhances safety by preventing electrical shocks and fire hazards.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Transco RCD/MCB Combination 10A 4.5KA Single Module is available now for immediate purchase. Ideal for residential and commercial spaces, ensuring effective circuit protection.
