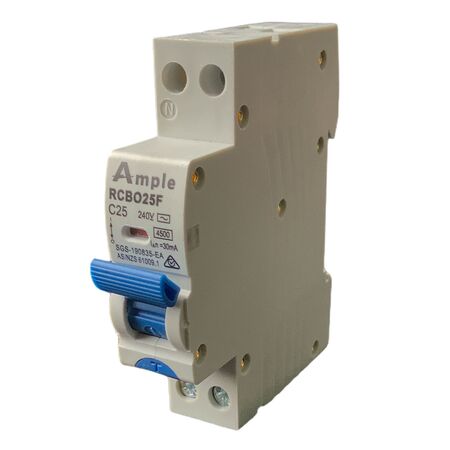

RCD/MCB Combination 25A 4.5KA | Single Module | IP20 Protection by Transco
RCD/MCB combination with 25A current and 4.5KA breaking capacity—ideal for residential and commercial circuit protection. Built for safety, with single module design and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD/MCB Combination 25A 4.5KA Single Module
Brand: Transco
SKU: RCBO25F
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Rated voltage: 1P 240V ~ 5%
- Frequency: 50/60Hz
- Number of poles: 1P+N
- Mechanical life: 10,000 cycles
- Electrical life: 4,000 cycles
- Installation: On symmetrical DIN rail 35mm panel mounting
- Connection: Pillar terminal with clamp
- Protection degree: IP20
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- Combination of residual current device and circuit breaker in a single module.
- Rated current options: 10A, 16A, 20A, 25A, 32A.
- Breaking capacity of 4,500A.
- Rated residual operation current of 30mA (10mA available upon request).
- Tripping curve C for enhanced protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring circuit protection
Standards & Compliance
- Complies with IEC/EN AS/NZS 61009-1 for safety and performance standards.
Environmental Benefits
- Enhanced safety reduces the risk of electrical hazards.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Transco RCD/MCB Combination 25A 4.5KA Single Module is available now for immediate purchase. Ideal for residential and commercial spaces requiring reliable circuit protection.
