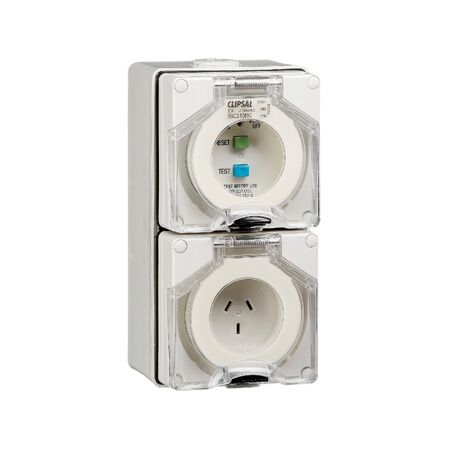

RCD Protected Switched Socket Outlet | 250V 10A | IP66 Grey by Clipsal
RCD protected switched socket outlet with 250V, 10A capacity and IP66 rating—ideal for utility and small commercial applications. Built for enhanced safety with weatherproof design and push-button control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, RCD Protected Switched Socket Outlet, 250V, 10A, 3 Flat PIN, IP66, 30mA Grey
Brand: Clipsal
SKU: 56C310RC-RW
Alternatively Known As: RCD Socket Outlet, Weatherproof Socket, Industrial Socket Outlet
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 250V AC 50Hz
- Number of poles: 3
- Number of gangs: 2
- Connections: screw terminals for cables 1-6 mm²
- Electrical insulation class: Class II
- Ambient air temperature for operation: -25 to 75 °C
- Earth-leakage protection class: Type A
- Material: Polycarbonate
- Dimensions (H x L x W): 204mm x 102mm x 101mm
- Weight: 0.94 kg
Key Features
- RCD protection for enhanced safety
- IP66 rated for outdoor use
- Push-button control type
- Surface mounted design
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended.
Applications
- Utility industry
- Small commercial
Standards & Compliance
- Complies with Australian safety standards.
Environmental Benefits
- Compliant with RoHS directives and mercury-free.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series RCD Protected Switched Socket Outlet is available now for immediate purchase. Ideal for utility and small commercial applications.
