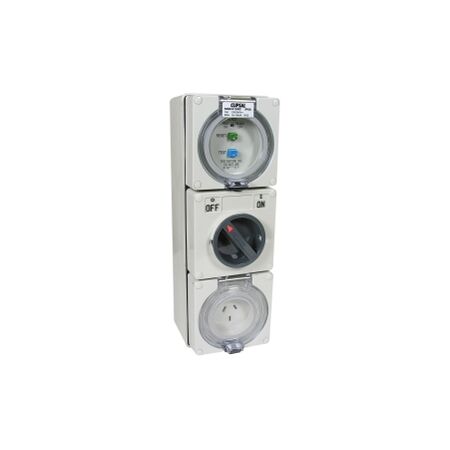

RCD Protected Switched Socket Outlet | 250V 10A | IP66 Rated | Grey by Clipsal
RCD protected switched socket outlet with 250V 10A capacity and IP66 rating—ideal for small commercial and utility applications. Built for enhanced safety, with weatherproof design for outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, RCD Protected Switched Socket Outlet, 250V 10A, 3 Flat PIN IP66, 1 Pole, 30mA RCD Grey
Brand: Clipsal
SKU: 56SC310RC-GY
Alternatively Known As: RCD Socket Outlet, Weatherproof Socket Outlet
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 250V AC 50Hz
- Number of poles: 3
- Number of power socket outlets: 1
- Device mounting: surface
- Connections: screw terminals for cables 2.5-6 mm²
- Ambient air temperature for operation: -25 to 75 °C
- Material: Polycarbonate
- Dimensions (H x L x W): 294mm x 100mm x 101mm
- Weight: 1.38 kg
Key Features
- RCD protection for enhanced safety
- IP66 rated for outdoor use
- Push-button control type
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended.
Applications
- Small commercial and utility industry applications
Standards & Compliance
- Complies with Australian safety standards for electrical devices.
Environmental Benefits
- Compliant with RoHS regulations
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series RCD Protected Switched Socket Outlet is available now for immediate purchase. Ideal for small commercial and utility applications.
