RCD Relay 240V 10mA | Manual Tripping Test | Mounting Bracket by Clipsal
RCD relay with 240V operation and 10mA sensitivity—ideal for residential and commercial safety. Built for reliable earth-leakage protection, with manual tripping test and easy mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

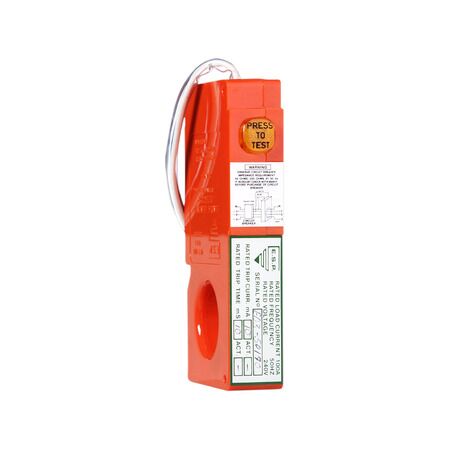

Product Name/Title: Medilec, RCD Relay, 240V, 10mA / 10Ms with Mounting Bracket -
Brand: Clipsal
SKU: E03/10/10
Alternatively Known As: RCD Relay, Residual Current Device, Earth Leakage Relay
Technical Specifications
- Rated current: 100 A at 40 °C
- Rated operational voltage: 220/230/240 V AC 50 Hz
- Protection type: MCB
- Local signalling: 1 neon
- Earth-leakage protection time delay: 40 ms
- Rated insulation voltage: 500 V DC
- Rated impulse withstand voltage: 6 kV
- Surge current: 25 A
- Dimensions (H x L x W): 141mm x 72mm x 27mm
- Weight: 0.23 kg
Key Features
- Residual current protection relay with manual tripping test.
- Earth-leakage sensitivity of 10 mA.
- Conforms to AS/NZS 3190 standards.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Health Solutions: Medical facilities requiring residual current protection
Standards & Compliance
- Conforms to AS/NZS 3190 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and mercury-free.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Medilec RCD Relay 240V 10mA with Mounting Bracket is available now for immediate purchase. Ideal for health solutions and safety applications.
