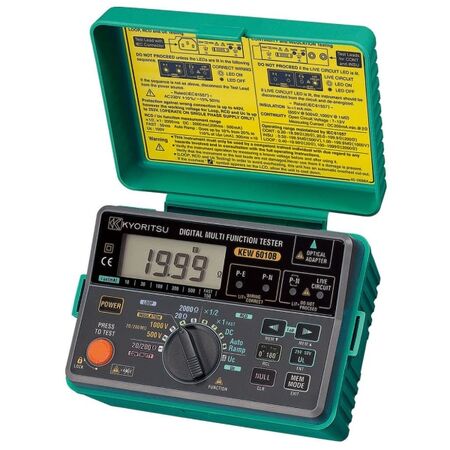

RCD Tester 500 1000V Kyoritsu

BRAND: Kyoritsu
SKU: 6010B
$1,542.60 List price: $1,933.80
+ −
30 Days Return Electricians Unlock Trade Access
Kyoritsu RCD Tester. For AU electrician testing and compliance work.
Technical Specifications
  • Continuity: 20/200Ω with 200mA test current
  • Insulation: 500/1000V, 20/200MΩ with 1mA rated test current
  • Loop Impedance: 20/2000Ω with 15mA test current at 2000Ω (no RCD trip)
  • RCD Testing: 10/30/100/300/500mA with x1/2, x1, fast trip (40ms), DC, auto ramp
  • Contact Voltage (Uc): 100V
  • Data Memory: Stores up to 300 measured results
  • Safety Standards: Designed to IEC 61010-1, IEC 61557
  • Dimensions (H x L x W): 90mm x 80mm x 180mm
  • Weight: 1.2 kg
Key Features
  • Continuity testing up to 200Ω with 200mA DC short circuit current
  • Insulation resistance measurement up to 200MΩ with 500 V DC test voltage
  • Loop impedance testing up to 2000Ω with 15mA test current
  • RCD testing across multiple currents (10/30/100/300/500 mA) with auto ramp function
  • Contact voltage measurement up to 100V
  • Built-in memory to store up to 300 measured results

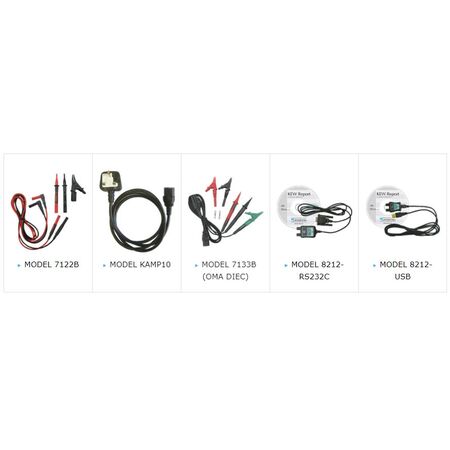

  • Data transfer to PC via optional communication adaptor and KEW Report software
  • Safety features include live circuit warning LED and overload protection
Professional Installation Requirements
  • Should be operated by qualified electricians or trained professionals to ensure accurate testing and safety compliance.
Applications
  • Electrical testing for continuity, insulation resistance, loop impedance, and RCD testing
  • Suitable for electricians and electrical maintenance professionals
  • Testing and verification of electrical installations and safety compliance
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Helps ensure electrical safety and efficiency, reducing energy waste and electrical faults
  • Supports maintenance of electrical systems to prevent hazardous failures
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Rapid Tech Multi Function Tester Kyoritsu 6010B is available now for immediate purchase. Ideal for professional electrical testing and maintenance applications.
