RCD Tester | Microprocessor Controlled | IP54 Rated | Digital Readout | by Rapid Tech
RCD Tester with microprocessor control and digital readout — ideal for electricians and safety inspectors. This device ensures high accuracy in trip time tests and ramp current tests on RCDs, complying with AS/NZS 3760:2003 standards. With an IP54 rated enclosure, it offers dust and water resistance, making it perfect for various testing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Microprocessor controlled for high accuracy
- 3 LED indicators for wiring status
- Phase angle switch: 0 and 180 degrees
- Digital tripping time readout
- Constant current source circuitry
- IP54 rated enclosure
- Complies with IEC 61557
- Tests Standard, Selective, AC and A type RCDs
- Dimensions (H x L x W): 90mm x 230mm x 180mm
- Weight: 1.5 kg
Key Features
- Custom microprocessor controlled for highest accuracy and reliability
- 3 LEDs for checking correct wiring status
- 0 and 180 degree phase angle switch for quick tests and consistent readings
- Digital read-out of tripping time
- Constant current source circuitry ensures accuracy despite fluctuating mains voltage
- Large custom digital display readout
- Visual indication of reversed phase and neutral wiring at socket
- Designed to IP54 rating for dust and water resistance
- Complies with IEC 61557 standard
- Tests a wide range of RCD types including Standard, Selective, AC and A (DC sensitive breakers)
Professional Installation Requirements
- Should be operated by qualified electricians or trained personnel familiar with electrical safety testing and RCD operation.
Applications
- Performing trip time tests and ramp current tests on RCDs as required by electrical regulation and AS/NZS3760:2003
- Testing residual operating current and wiring status of RCDs in single-phase circuits
- Use by electricians and electrical safety inspectors for RCD compliance and safety verification
Standards & Compliance
- Complies with AS/NZS 3760:2003 for electrical safety testing
- Relevant to AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps ensure electrical safety reducing risk of electrical faults and fires
- Supports compliance with safety standards to prevent electrical accidents
Warranty Information
2 years warranty against manufacturing defects.
Available Now

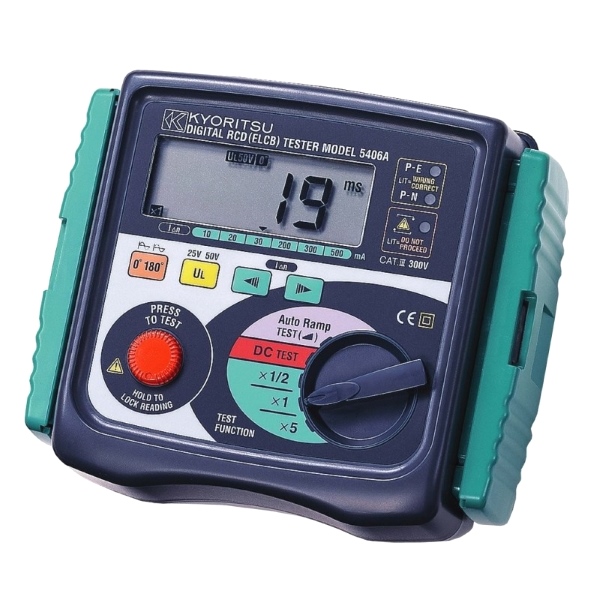

The Rapid Tech Kyoritsu 5406A RCD Tester is available now for immediate purchase. Ideal for electricians and safety inspectors requiring precise RCD testing.
