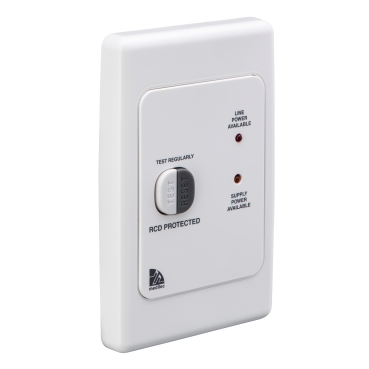

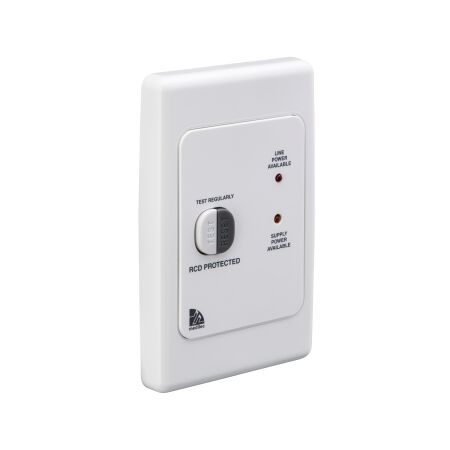

RCD Vertical 20A 10mA 250V | Enhanced Electrical Safety | Fast Tripping | Vertical Mount | @Pack of 1 | by Clipsal
The RCD Vertical 20A 10mA 250V is a Residual Current Device designed for enhanced electrical safety in residential, commercial, and industrial applications. With a fast tripping mechanism and a sensitivity of 10mA, it effectively prevents electric shock, ensuring compliance with AS/NZS standards. Ideal for protecting power circuits, this device is perfect for licensed electricians looking to enhance safety in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCD Vertical 20A 10mA 250V | Enhanced Electrical Safety | Fast Tripping | Vertical Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: MEDML2031VRC10WE
Alternatively Known As: Clipsal MEDML2031VRC10WE, Clipsal 20A RCD, Clipsal 10mA Safety Switch, Clipsal Vertical RCD, Clipsal RCD Power Point
Technical Specifications
- Rated Current: 20A
- Rated Voltage: 250V AC
- Sensitivity: 10mA
- Type: Residual Current Device (RCD)
- Mounting: Vertical
- Application: Power circuit protection
- Complies with AS/NZS 3190 and AS/NZS 61008.1
- Dimensions (H x L x W): 85mm x 60mm x 42mm
- Weight: 0.25 kg
Key Features
- Residual Current Device (RCD) for enhanced electrical safety
- Vertical orientation for streamlined installation
- Rated at 20A, 10mA sensitivity for high protection
- Operates at 250V AC
- Fast tripping to prevent electric shock
- Suitable for use with Clipsal Medilec range
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential: Protection of power circuits in homes
- Commercial: Offices, retail, and hospitality environments
- Industrial: Workshops and light industrial settings requiring RCD protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3190 – Approval and test specification – Residual current devices (current-operated earth-leakage devices)
- Complies with AS/NZS 61008.1 – Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and injury
- Supports compliance with modern safety standards, promoting safer environments
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RCD Vertical 20A 10mA 250V MEDML2031VRC10WE is available for immediate purchase. Ideal for residential, commercial, and light industrial electrical safety applications.
