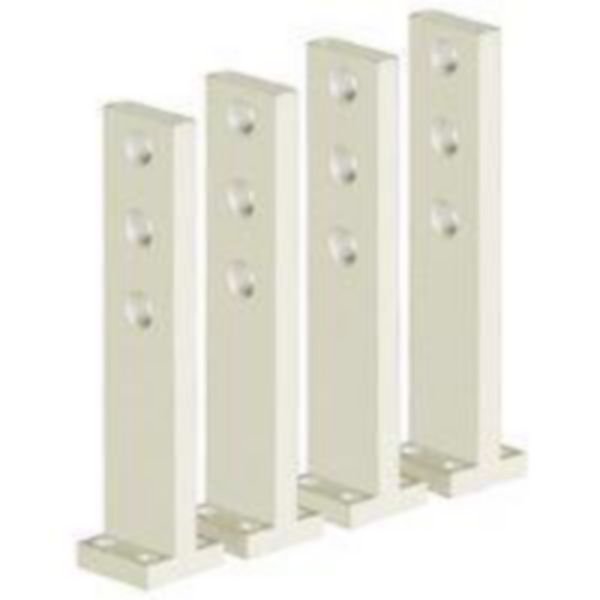

Rear Terminals for DPX 1250/1600 | Set of 8 Long Terminals | Incoming/Outgoing Connections | by Legrand

BRAND: Legrand
SKU: 026383
$2,547.50 List price: $3,174.50
+ −
30 Days Return Delivery Options
Rear terminals for DPX 1250/1600 are designed for reliable incoming or outgoing connections in electrical switchboards. This set of 8 long terminals features a robust design, compatible with DPX isolating switches, ensuring safe and efficient electrical distribution. Ideal for professional installations, these terminals conform to IEC 60947-3 standards and include integrated safety features for enhanced protection.

Product Name/Title: Rear Terminals for DPX 1250/1600 | Set of 8 Long Terminals | Incoming/Outgoing Connections | by Legrand

Brand: Legrand

SKU: 026383

Alternatively Known As: DPX 1250/1600 Rear Terminals, Long Rear Terminals for DPX Switches, Legrand DPX Rear Connectors

Technical Specifications
  • Busbar thickness: 11.5 mm
  • Busbar width: 40 mm
  • Suitable for flat rail
  • Width clamp: 40 mm
  • Max conductor cross section: 480 mm²
  • Max rated operation current Ie: 1600 A
  • Suitable for sector conductor connection: Yes
  • Suitable for round conductor connection: No
  • Suitable for strip conductor connection: No
  • Dimensions (H x L x W): 100mm x 300mm x 200mm
  • Weight: 5 kg
Key Features
  • Set of 8 long rear terminals for incoming or outgoing connections
  • Compatible with DPX 1250/1600 isolating switches (800 to 1600 A)
  • Connection with cage terminals
  • Padlock integrated in the handle for safety
  • Supplied with terminal shields
  • Conforms to IEC 60947-3 standards
  • Category of use AC 23 A
  • Accepts electrical auxiliaries
  • Can be mounted on plate in XL³ enclosures
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper connection.
Applications
  • Used in switchboards and power cabinets
  • Suitable for DPX 1250/1600 isolating switches
  • Ideal for electrical distribution and circuit protection systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Supports efficient electrical connections reducing energy losses
Warranty Information

Legrand standard warranty applies, typically 1-2 years against manufacturing defects.

Available Now

Legrand Rear Terminals (8) for DPX 1250/1600 are available for immediate purchase, ideal for use in industrial and commercial electrical switchboards.
