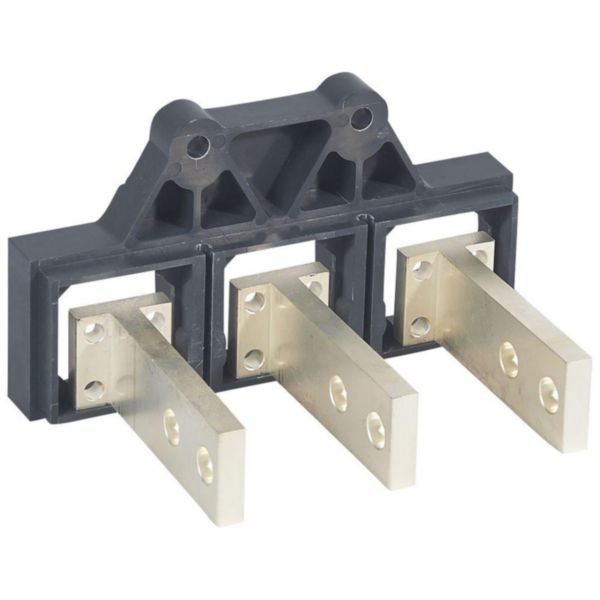

Rear Terminals for DPX 1250/1600 | Set of 6 Short Terminals | Incoming/Outgoing Connections | by Legrand
Rear terminals for DPX 1250/1600 are designed for reliable incoming or outgoing connections in switchboards and power cabinets. This set of 6 short terminals is compatible with isolating switches rated from 800 to 1600 A, ensuring safe and efficient electrical distribution. Built with durable materials and compliant with IEC 60947-3 standards, they enhance electrical safety while minimizing the risk of faults.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rear Terminals for DPX 1250/1600 | Set of 6 Short Terminals | Incoming/Outgoing Connections | by Legrand
Brand: Legrand
SKU: 026380
Alternatively Known As: DPX 1250/1600 Rear Terminals, Legrand DPX Rear Terminal Kit, Short Rear Terminals for DPX Switches
Technical Specifications
- Busbar thickness: 11.5 mm
- Busbar width: 40 mm
- Suitable for flat rail
- Width clamp: 40 mm
- Max conductor cross section: 480 mm²
- Max rated operation current Ie: 1600 A
- Suitable for sector conductor connection: Yes
- Suitable for round conductor connection: No
- Suitable for strip conductor connection: No
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.5 kg
Key Features
- Compatible with DPX 1250/1600 isolating switches rated 800 to 1600 A
- Set of 6 short rear terminals for incoming or outgoing connections
- Connection with cage terminals
- Padlock integrated in the handle for safety
- Supplied with terminal shields
- Conforms to IEC 60947-3 standards
- Category of use AC 23 A
- Accepts electrical auxiliaries
- Can be mounted on plate in XL³ enclosures
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with DPX switchgear and compliant with local electrical standards.
Applications
- Used in switchboards and power cabinets for circuit breaker and moulded case switch applications
- Suitable for converting fixed version with front terminals to rear terminals in DPX 1250/1600 isolating switches
- Ideal for electrical distribution systems requiring reliable and safe terminal connections
Standards & Compliance
- Complies with AS/NZS 60947-3 for low-voltage switchgear and control gear
Environmental Benefits
- Enhances electrical safety reducing risk of faults and energy loss
- Durable materials reduce need for frequent replacements, minimizing waste
Warranty Information
Legrand standard warranty applies, typically 1 to 3 years depending on region and product registration.
Available Now
Legrand Rear Terminals (6) for DPX 1250/1600 are available for immediate purchase, ideal for upgrading or maintaining switchboards and power cabinets.
