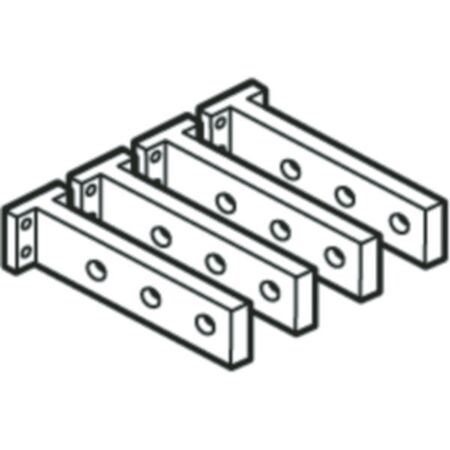

Rear Terminals for DPX 1250/1600 | Set of 6 Long Terminals | Incoming/Outgoing Connections | by Legrand
Rear terminals for DPX 1250/1600 are designed for reliable incoming or outgoing connections, featuring a set of 6 long terminals that ensure compatibility with DPX isolating switches. Ideal for switchboards and power cabinets, these terminals support efficient electrical distribution and circuit protection in industrial settings, while conforming to IEC 60947-3 standards for safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rear Terminals for DPX 1250/1600 | Set of 6 Long Terminals | Incoming/Outgoing Connections | by Legrand
Brand: Legrand
SKU: 026381
Alternatively Known As: DPX 1250/1600 Rear Terminals, Long Rear Terminals for DPX Switches, Legrand DPX Terminal Set
Technical Specifications
- Busbar thickness: 11.5 mm
- Busbar width: 40 mm
- Suitable for flat rail
- Width clamp: 40 mm
- Max conductor cross section: 480 mm²
- Max rated operation current Ie: 1600 A
- Suitable for sector conductor connection: Yes
- Suitable for round conductor connection: No
- Suitable for strip conductor connection: No
- Dimensions (H x L x W): 50mm x 300mm x 150mm
- Weight: 2.5 kg
Key Features
- Set of 6 long rear terminals for incoming or outgoing connections
- Compatible with DPX 1250/1600 isolating switches
- Connection with cage terminals
- Padlock integrated in the handle for safety
- Supplied with terminal shields
- Conforms to IEC 60947-3 standards
- Category of use AC 23 A
- Accepts electrical auxiliaries
- Can be mounted on plate in XL³ enclosures
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper connection.
Applications
- Used in switchboards and power cabinets for DPX 1250/1600 isolating switches
- Suitable for converting fixed version with front terminals to rear terminals
- Ideal for electrical distribution and circuit protection in industrial and commercial settings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports efficient electrical connections that reduce energy loss
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects.
Available Now
Legrand Rear Terminals (6) for DPX 1250/1600 are available for immediate purchase, ideal for upgrading or maintaining switchboard connections.
