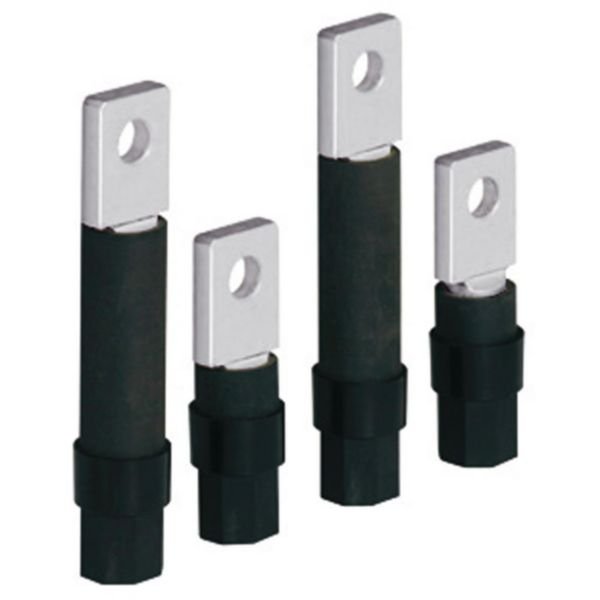

Rear Terminals for DPX/DPX-IS 630 | Flat 3-Pole Design | 630A Rated | Safety Padlock | @Each of 1 | by Legrand
Rear terminals for DPX/DPX-IS 630 are designed for 3-pole connections with a robust 630A rating, ensuring reliable performance in electrical switchboards and power cabinets. Featuring a safety padlock integrated into the handle and compliance with IEC 60947-3 standards, these terminals are perfect for industrial and commercial electrical distribution systems, providing efficient electrical isolation and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rear Terminals for DPX/DPX-IS 630 | Flat 3-Pole Design | 630A Rated | Safety Padlock | @Each of 1 | by Legrand
Brand: Legrand
SKU: 026352
Alternatively Known As: DPX rear terminals, DPX-IS 630 flat terminals, 3P rear terminals for DPX
Technical Specifications
- Busbar thickness: 20 mm
- Busbar width: 20 mm
- Suitable for flat rail
- Width clamp: 20 mm
- Max conductor cross section: 314.16 mm²
- Max rated operation current Ie: 630 A
- Suitable for sector conductor connection: Yes
- Suitable for round conductor connection: No
- Suitable for strip conductor connection: No
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Designed for DPX/DPX-IS 630 isolating switches with 400 to 630 A rating
- Flat rear terminals suitable for 3-pole connections
- Padlock integrated in the handle for safety
- Supplied with terminal shields and cage terminals
- Conforms to IEC 60947-3 standards
- Category of use AC 23 A
- Accepts electrical auxiliaries
- Can be mounted on plate in XL³ enclosures
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper connection.
Applications
- Electrical switchboards and power cabinets
- Circuit breaker and moulded case switch installations
- Industrial and commercial electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient electrical isolation reducing energy loss
- Durable materials reduce need for frequent replacements
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Rear Terminals for DPX/DPX-IS 630 Flat 3P are available for immediate purchase, ideal for use in industrial and commercial electrical switchboards.
