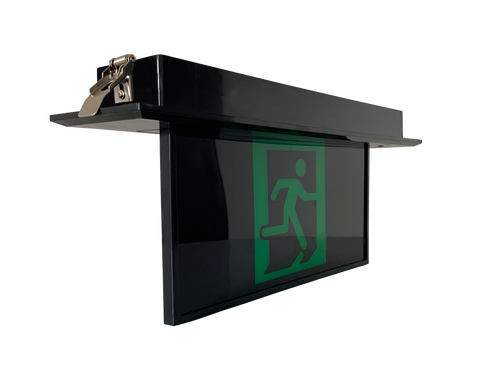

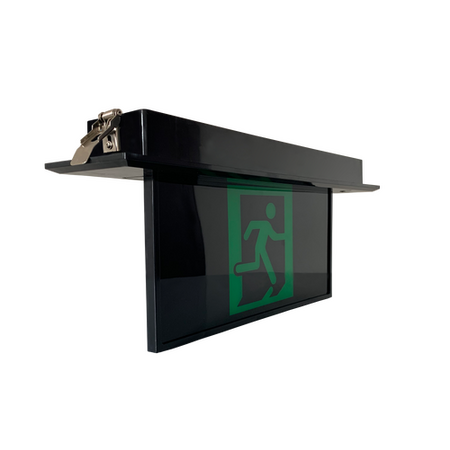

Recessed Blade Exit Sign | 240V | Maintained Operation | Black by Lawell Lightning

BRAND: Lawel Lighting

SKU: LWJE1703B

$142.00 List price: $185.00

+ −

30 Days Return Delivery Options

Recessed blade exit sign with 240V input and maintained operation—ideal for commercial, public, and residential buildings. Built for compliance with AS/NZS 2293, featuring a durable polycarbonate body and long-life LED lamp.

Description
Attachments

Product Name/Title: Recessed Blade Exit - Black

Brand: Lawell Lightning

SKU: LWJE1703B

Alternatively Known As: LED Exit Sign, Emergency Exit Blade Light, Recessed Exit Light, Lawell Emergency Exit, JADE Exit Sign

Technical Specifications

Input Voltage: 240V
Construction: Polycarbonate body with transparent acrylic blade
Mounting: Ceiling recessed
Operation Mode: Maintained
Testing System: Manual test switch
Battery: 2200mAh lithium, 3 hour discharge
Classification: C0: D12.5, C90: D8
Viewing Distance: 24m
Lamp: LED, 50,000 hours rated life
Operating Temperature: 1°C to 40°C
Cutout Size: 430x75mm

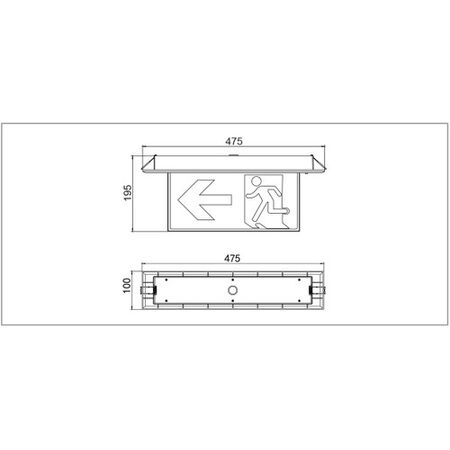

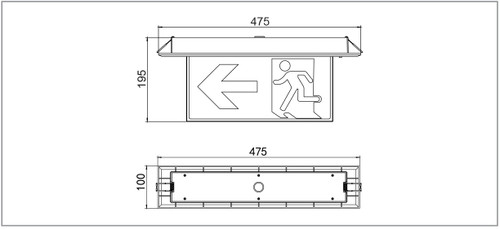

Dimensions (H x L x W): 195mm x 100mm x 475mm
Weight: 1.56 kg

Key Features

Low 3W standby power consumption
Supplied with both single and double sided decals (running man pictograph and EXIT)
Large terminal block and cable entry for easy installation
Durable polycarbonate body with transparent acrylic blade
Maintained operation mode
Manual test switch for routine testing
2200mAh lithium battery with 3 hour discharge
Long-life LED lamp (50,000 hours)
24m viewing distance
Cutout size: 430x75mm

Professional Installation Requirements

Installation must be performed by a licensed electrician to ensure compliance with AS/NZS 2293 and local regulations.

Applications

Commercial buildings: offices, shopping centres, warehouses
Public facilities: hospitals, schools, airports
Residential complexes: apartments, hotels
Any premises requiring compliant emergency exit signage

Standards & Compliance

Complies with AS/NZS 2293 for emergency escape lighting and exit signs

Environmental Benefits

Low power consumption reduces energy usage
Long-life LED reduces maintenance and waste
Lithium battery technology is more environmentally friendly than traditional alternatives

Warranty Information

3 year warranty covering manufacturing defects and battery performance.

Available Now

Available for immediate purchase. Ideal for commercial, public, and residential buildings requiring compliant emergency exit lighting.

(E1703_Datasheet.pdf, 409 Kb) [Download]

(E1703_ies.pdf, 115 Kb) [Download]
