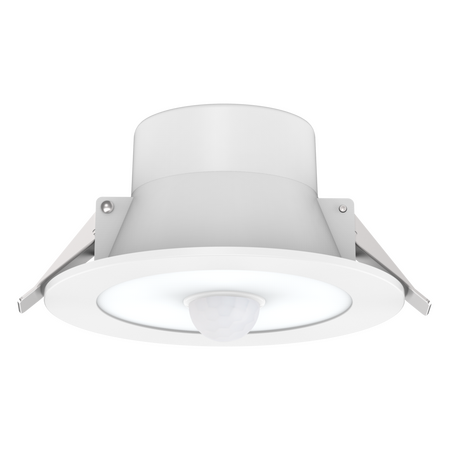

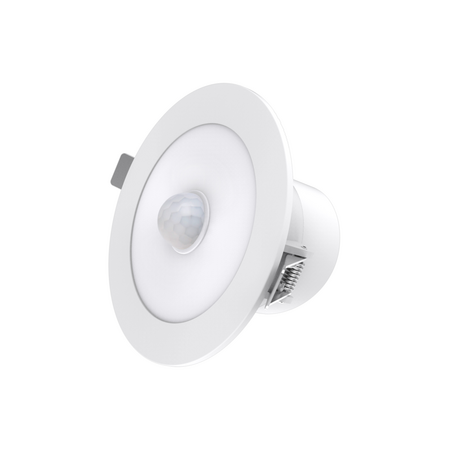

Recessed CCT LED Downlight with Sensor | 10W | 3000/4000/5700K

BRAND: 3A Lighting

SKU: S9062TC/S

$37.40 List price: $49.70

+ −

30 Days Return Delivery Options

Recessed CCT LED downlight with selectable 3000/4000/5700K color temperature and 10W power—ideal for bathrooms and storage spaces. Built with PIR sensor control for automatic lighting and easy installation with flex and plug.

Description
Attachments

Product Name/Title: Recessed CCT LED Downlight with Sensor | 10W | 3000/4000/5700K

SKU: S9062TC/S

Alternatively Known As: LED Downlight with PIR Sensor, CCT LED Downlight, Motion Sensor LED Downlight

Technical Specifications

Power Wattage: 10W
Colour Temperature: Selectable 3000K / 4000K / 5700K
Sensor Type: PIR with fixed 30 second ON motion detection
Control Gear: Integral non-dimmable LED
IC Rating: IC-4
Cut-out Size: 92mm
Trim: White
Diffuser: Opal polycarbonate
Dimensions (H x L x W): 50mm x 100mm x 100mm
Weight: 0.3 kg

Key Features

Selectable colour temperature with integral DIP switch (3000K / 4000K / 5700K)
Integral PIR sensor control with fixed 30 second ON motion detection
Integral non-dimmable LED 10 watt control gear
IC-4 rated
Designed with flex and plug for easy installation
Stylish white trim and opal polycarbonate diffuser
Cut-out size 92mm

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure correct sensor and electrical connections.

Applications

Interior service areas
Bathrooms
Storage spaces

Standards & Compliance

AS/NZS 60598 – Luminaires safety and performance standards

Environmental Benefits

Energy-efficient LED technology reduces power consumption.
Integral sensor reduces energy waste by activating light only when needed.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Recessed CCT LED Downlight with Sensor 10W is available now for immediate purchase. Ideal for interior service areas, bathrooms, and storage spaces.

Installation Sheets (CLARE_JAN23_Installation.pdf, 1,257 Kb) [Download]

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
