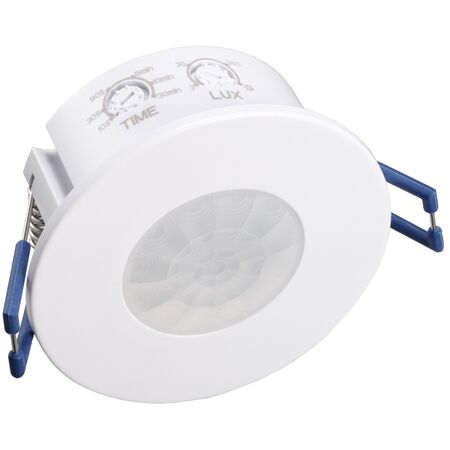

Recessed Infrared Motion Sensor | 360° Detection | 220-240V
Recessed infrared motion sensor with 360° detection and 220-240V voltage—ideal for energy-efficient lighting control. Built for versatile installations, with adjustable ambient light settings and a wide detection range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Recessed Infrared Motion Sensor | 360° Detection | 220-240V
SKU: LXSR2-1200W
Alternatively Known As: Infrared Motion Detector, PIR Motion Sensor, Recessed Occupancy Sensor, 360 Degree Motion Sensor
Technical Specifications
- Voltage: 220-240V AC
- Power Frequency: 50/60Hz
- Detection Range: 360°
- Detection Distance: Up to 8 meters at temperatures below 24°C
- Ambient Light Sensitivity: Adjustable from <3 to 2000 LUX
- Working Temperature: -20°C to +40°C
- Time Delay: Minimum 10 seconds ±3 seconds, Maximum 30 minutes ±2 minutes
- Working Humidity: Less than 93% RH
- Power Consumption: Approximately 0.5W
- Rated Load: Maximum 1200W, Minimum 600W
- Installation Height: 1.8 to 4 meters
- Detection Moving Speed: 0.6 to 1.5 meters per second
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- 360° detection range for comprehensive motion sensing
- Adjustable ambient light sensitivity from <3 to 2000 LUX
- Wide working temperature range from -20°C to +40°C
- Time delay adjustable from minimum 10 seconds to maximum 30 minutes
- Low power consumption of approximately 0.5W
- Suitable for installation heights between 1.8m and 4m
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal sensor performance.
Applications
- Residential: Automatic lighting control in homes
- Commercial: Energy-saving lighting in offices and retail spaces
- Industrial: Motion-activated lighting for warehouses and factories
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by activating lighting only when motion is detected
- Helps lower carbon footprint through efficient power usage
Warranty Information
1 year warranty covering manufacturing defects and performance issues.
Available Now
The Recessed Infrared Motion Sensor is available now for immediate purchase. Ideal for residential, commercial, and industrial applications requiring automated lighting control.
