Trade Discount 25%

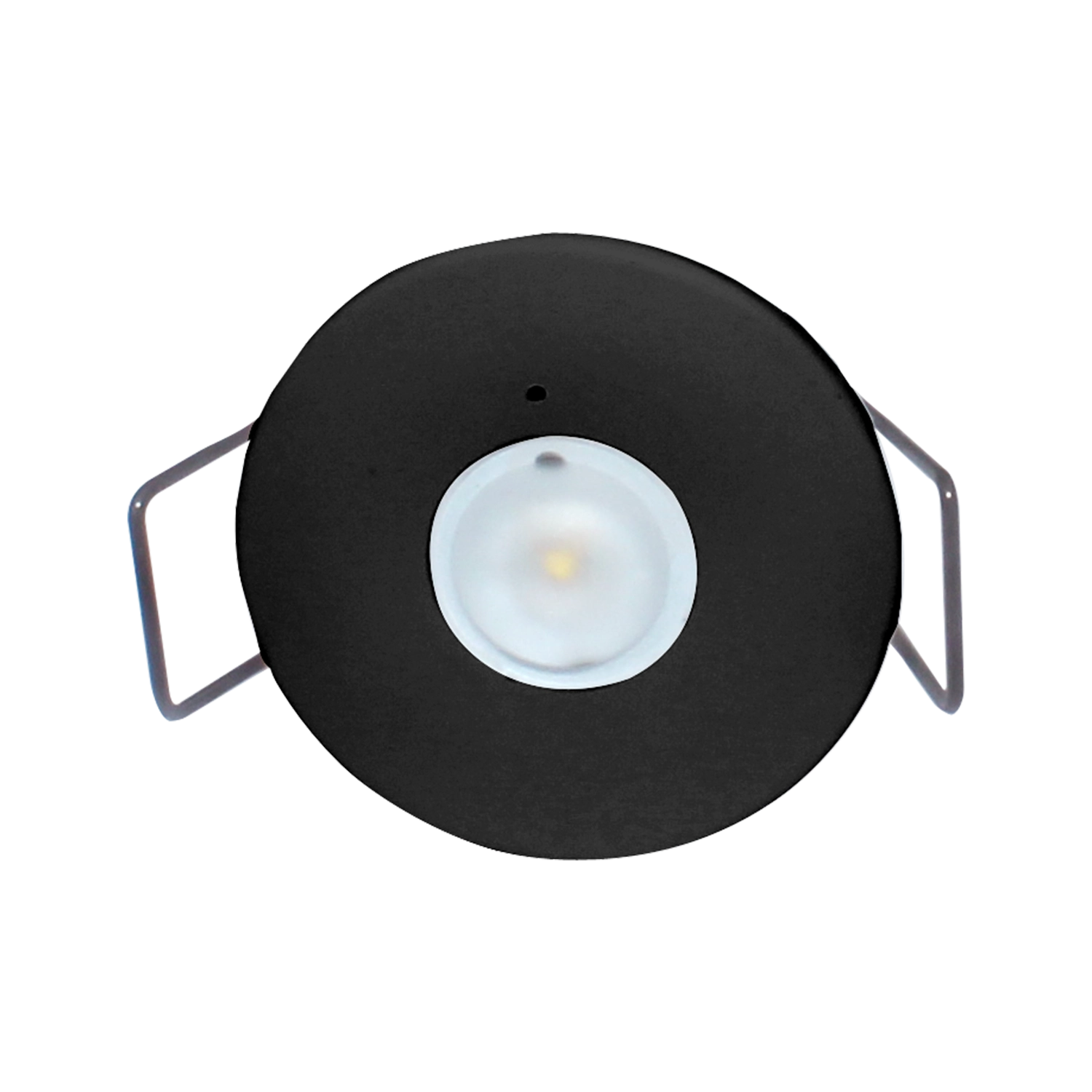

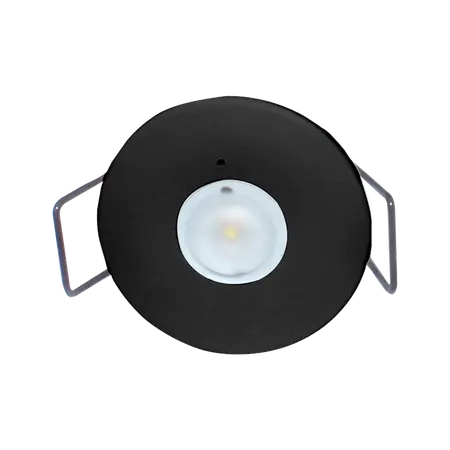

Recessed Mini LED Emergency 1.8W Non-Maintained D40 Black Domus
Domus mini recessed LED emergency spitfire, 1.8W, non-maintained, classification D40, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Mini Spitfire Emergency Light, D40 Emergency Luminaire, Non-Maintained Recessed Emergency Light
Technical Specifications
- Model: EVAC-D40-MINI
- Finish Colour: Black
- Emergency Operation: Non-maintained
- Emergency Classification: D40
- LED Type: COB
- Wattage: 1.8W
- Input Voltage: 240V AC
- Colour Temperature: 4000K
- Lumen Output: 130lm
- Beam Angle: 120°
- IP Rating: IP20
- Battery Type: LiFePO4
- Battery Voltage: 3.2V
- Emergency Duration: 3 hours / 180 minutes
- Mounting: Recessed
- Polarity Reversal Protection: Yes
- Dimensions (H x L x W): 26mm x 37mm x 37mm
- Weight: 0.3 kg
Key Features
- Compact recessed emergency light for discreet installations
- Non-maintained emergency operation
- D40 emergency lighting classification
- Three-hour emergency duration
- Low-power COB LED light source
- Polarity reversal protection for safer commissioning
- Suitable for suspended and surface-mounted LED profiles
- Available in a black finish
- Designed for commercial and interior applications
Professional Installation Requirements
- Installation and connection to 240V AC should be performed by a licensed electrician. Emergency lighting installation, commissioning and testing should be completed in accordance with the applicable AS/NZS 2293 requirements and local electrical regulations.
Applications
- Emergency lighting for apartments and multi-residential buildings
- Shopping centres and retail interiors
- Office buildings
- Hospitality venues
- Commercial interior spaces
- Suspended LED profiles
- Surface-mounted LED profiles requiring emergency functionality
Standards & Compliance
- AS/NZS 2293.3:2018 for emergency luminaires and exit signs
- AS/NZS 2293.1 for emergency lighting system design and installation
Environmental Benefits
- 1.8W LED operation reduces energy consumption during normal charging and emergency use
- Long-life LED technology can reduce replacement frequency and associated waste
- LiFePO4 battery technology supports extended service life
- Compact construction reduces material use compared with larger emergency luminaires
Warranty Information
Domus Lighting warranty policy provides a 5-year replacement warranty for residential emergency lighting and a 4-year replacement warranty for commercial emergency lighting, with 4-year battery replacement coverage. Warranty coverage requires installation by a licensed electrician and is subject to the manufacturer's warranty terms.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
