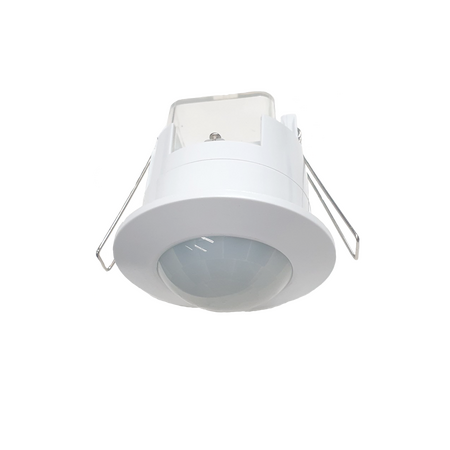

Recessed Mount Sensor 360º Detection | 6m Range | IP20
Recessed mount sensor with 360º detection angle and 6m range—ideal for interior ceiling installations. Built for energy efficiency, with adjustable ambient light settings and IP20 weatherproof rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Recessed Mount Sensor 360º Detection | 6m Range | IP20
SKU: LXSR1200W
Alternatively Known As: Recessed Motion Sensor, Ceiling Mount Occupancy Sensor, 360 Degree Motion Detector, Indoor Motion Sensor
Technical Specifications
- Detection Angle: 360º
- Detection Range: 6 metres
- Ambient Light Sensitivity: <3-2000 LUX (adjustable)
- Switching Capacity: 1200W Incandescent, 300W Fluorescent
- Power Supply: 220-240V
- Time Delay: Min. 10sec ±3sec, Max. 15min ±2min
- Installation Height: 2.2-4 metres
- Detection Motion Speed: 0.6-1.5 m/s
- IP Rating: IP20
- Cut Out Diameter: 60mm
- Dimensions (H x L x W): 40mm x 70mm x 70mm
- Weight: 0.2 kg
Key Features
- 360º detection angle
- 6 metre detection range
- Adjustable ambient light sensitivity from <3 to 2000 LUX
- Switching capacity: 1200W incandescent, 300W fluorescent
- Time delay adjustable from minimum 10 seconds to maximum 15 minutes
- Installation height between 2.2 to 4 metres
- Detection motion speed range 0.6 to 1.5 m/s
- Flush mount design for interior ceilings
- IP20 weatherproof rating
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Interior ceiling flush mount for residential and commercial lighting control
- Suitable for rooms, hallways, offices, and indoor spaces requiring motion detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce energy consumption by automatically controlling lighting based on occupancy
- Adjustable ambient light sensor prevents unnecessary lighting during daylight
Warranty Information
3 year warranty against manufacturing defects.
Available Now
The LANX LXSR1200W Recessed Mount Sensor is available now for immediate purchase. Ideal for energy-efficient lighting control in residential and commercial indoor spaces.
