Recessed Yellow Pushbutton | IP66 Rated | 22mm Diameter | Spring Return Mechanism | @Each of 1 | by Clipsal
The Recessed Yellow Pushbutton is designed for industrial control applications, featuring a robust IP66-rated construction and a 22mm diameter for easy integration. With a spring return mechanism for momentary operation, this pushbutton is perfect for machinery start/stop stations and automation systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

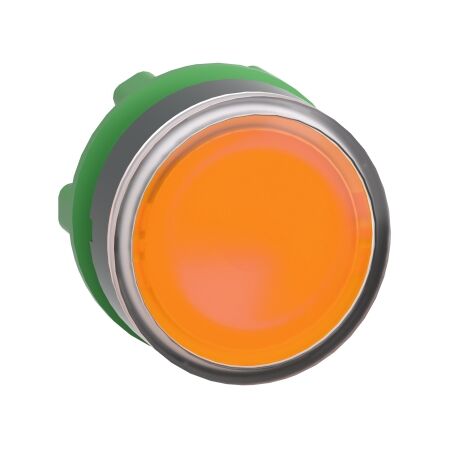

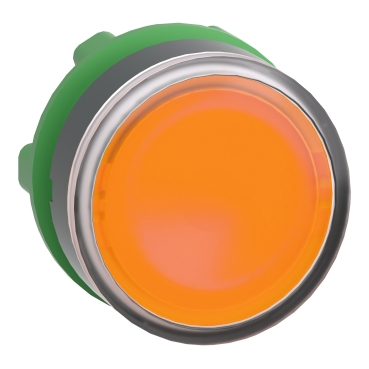

Product Name/Title: Recessed Yellow Pushbutton | IP66 Rated | 22mm Diameter | Spring Return Mechanism | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB5AA58
Alternatively Known As: Clipsal yellow pushbutton, recessed push button, SCHZB5AA58, Clipsal industrial button, 22mm yellow pushbutton
Technical Specifications
- Actuator type: Flush pushbutton head
- Colour: Yellow
- Mounting diameter: 22mm
- Operation: Spring return (momentary)
- Marking: Unmarked
- Material: High-impact plastic
- Ingress protection: IP66 (front face)
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 22mm x 40mm x 22mm
- Weight: 0.1 kg
Key Features
- Recessed yellow pushbutton head for enhanced safety
- Flush design with Ø22mm diameter
- Spring return mechanism for momentary operation
- Unmarked actuator for versatile use
- Robust construction suitable for industrial environments
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with safety standards and correct integration into control systems.
Applications
- Industrial control panels
- Machinery start/stop stations
- Automation systems
- Manufacturing equipment
- Electrical enclosures
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Durable design reduces replacement frequency and waste
- RoHS compliant materials minimize environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHZB5AA58 Recessed Yellow Pushbutton Head is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery applications.
