Rechargeable Thermal Imaging Camera | 10,800 Pixels | Adjustable Emissivity | 2.4 Inch TFT LCD | @Each by Wattmaster
The Rechargeable Thermal Imaging Camera features a high-resolution 10,800 pixel sensor and adjustable emissivity for precise temperature readings. Ideal for electrical troubleshooting, HVAC diagnostics, and building inspections, this camera helps detect hot and cold spots efficiently. With a user-friendly 2.4 inch TFT LCD display and rechargeable lithium-ion battery, it's perfect for professionals seeking reliable thermal imaging solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rechargeable Thermal Imaging Camera | 10,800 Pixels | Adjustable Emissivity | 2.4 Inch TFT LCD | @Each by Wattmaster
Brand: Wattmaster
SKU: A-TI250
Alternatively Known As: Thermal Imager, Infrared Camera, Thermal Imaging Camera, Heat Vision Camera, Thermal Scanner
Technical Specifications
- Sensor Type: VOx Microbolometer
- Sensor Resolution: 10,800 pixels
- Display: 2.4 inch TFT LCD with 320 x 240 pixel resolution
- Thermal Sensitivity: <60 mK
- Spectral Range: 8 to 14 μm
- Temperature Range: -20°C to 400°C (-4°F to 752°F)
- Accuracy: ±2°C or 2% above 100°C; ±3°C or 3% below 100°C
- Field of View: 50° ±3°
- Colour Palettes: Ironbow, Rainbow, Greyscale
- Maximum Frame Rate: <9 Hz
- Memory: Supports microSD® card (not included)
- Battery: Rechargeable lithium-ion
- Material: ABS/PC housing with electronic components
- Dimensions (H x L x W): 80mm x 80mm x 25mm
- Weight: 0.241 kg
Key Features

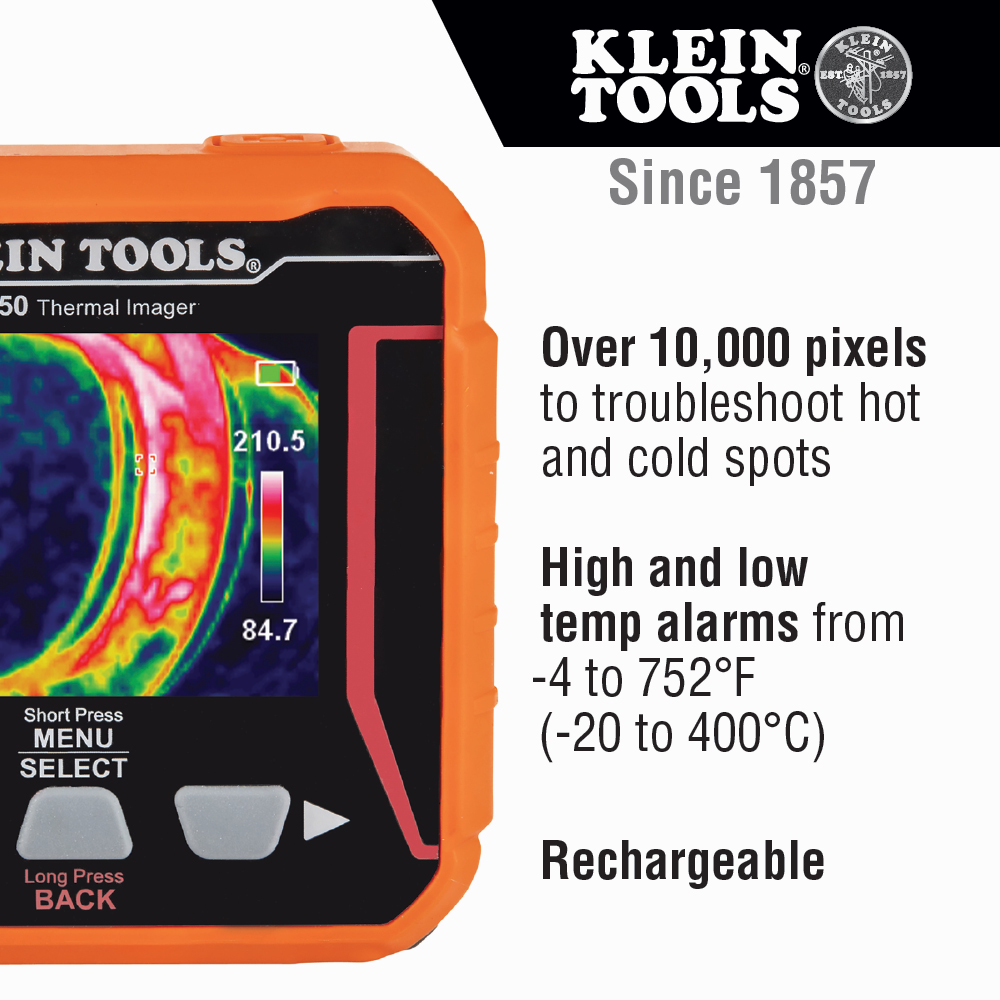

- Thermal imager with 10,800 pixel resolution for detailed thermal images
- Adjustable emissivity from 0.01 to 1.00 for accurate temperature readings
- User selectable high and low temperature alarms from -20°C to 400°C
- Three selectable colour palettes: Ironbow, Rainbow, and Greyscale

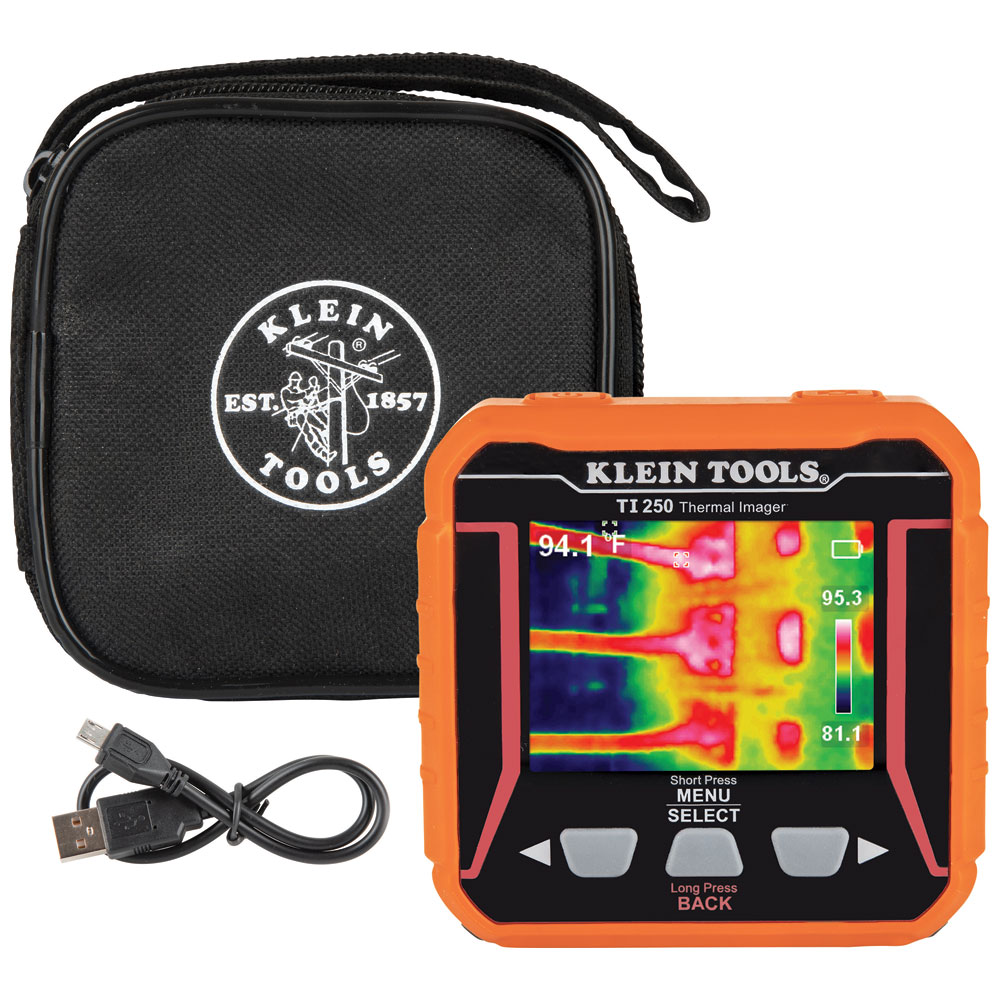

- Rechargeable lithium-ion battery with included micro-USB charging cable

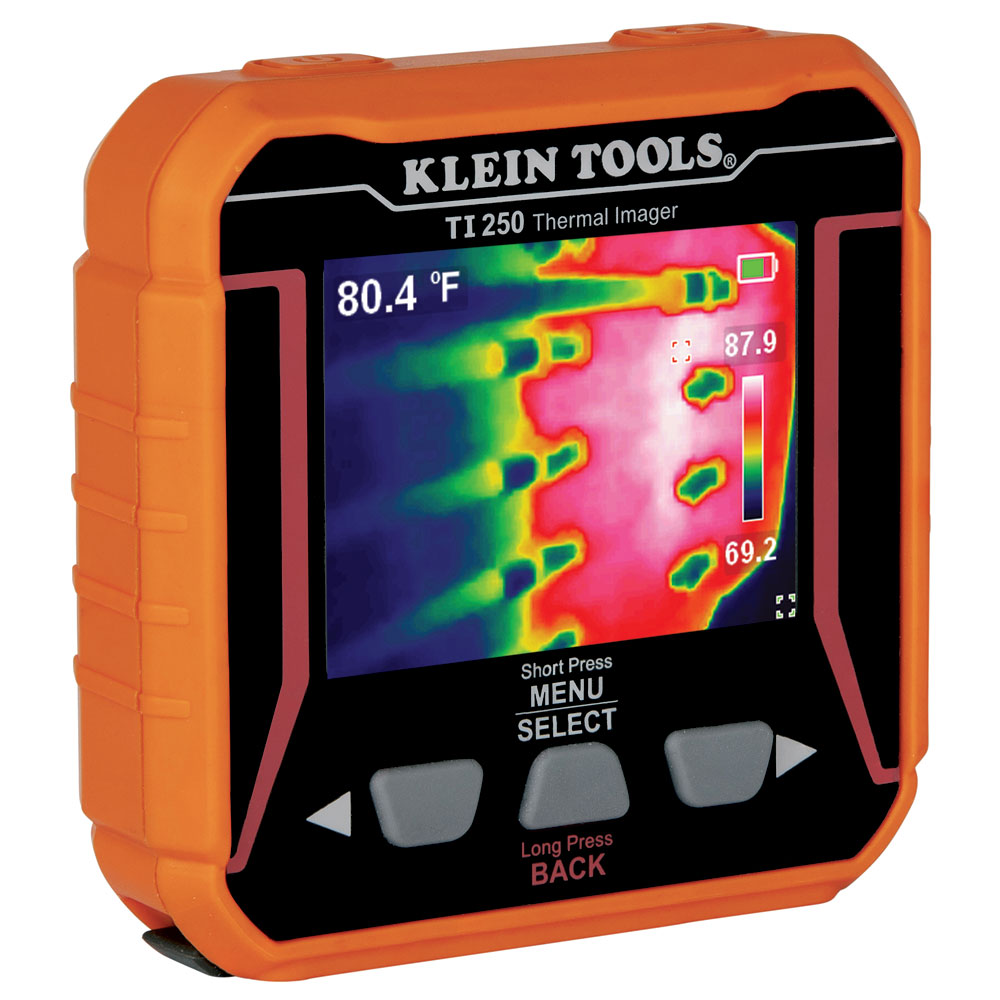

- 2.4 inch TFT LCD display for clear viewing
- Crosshairs to pinpoint specific temperatures

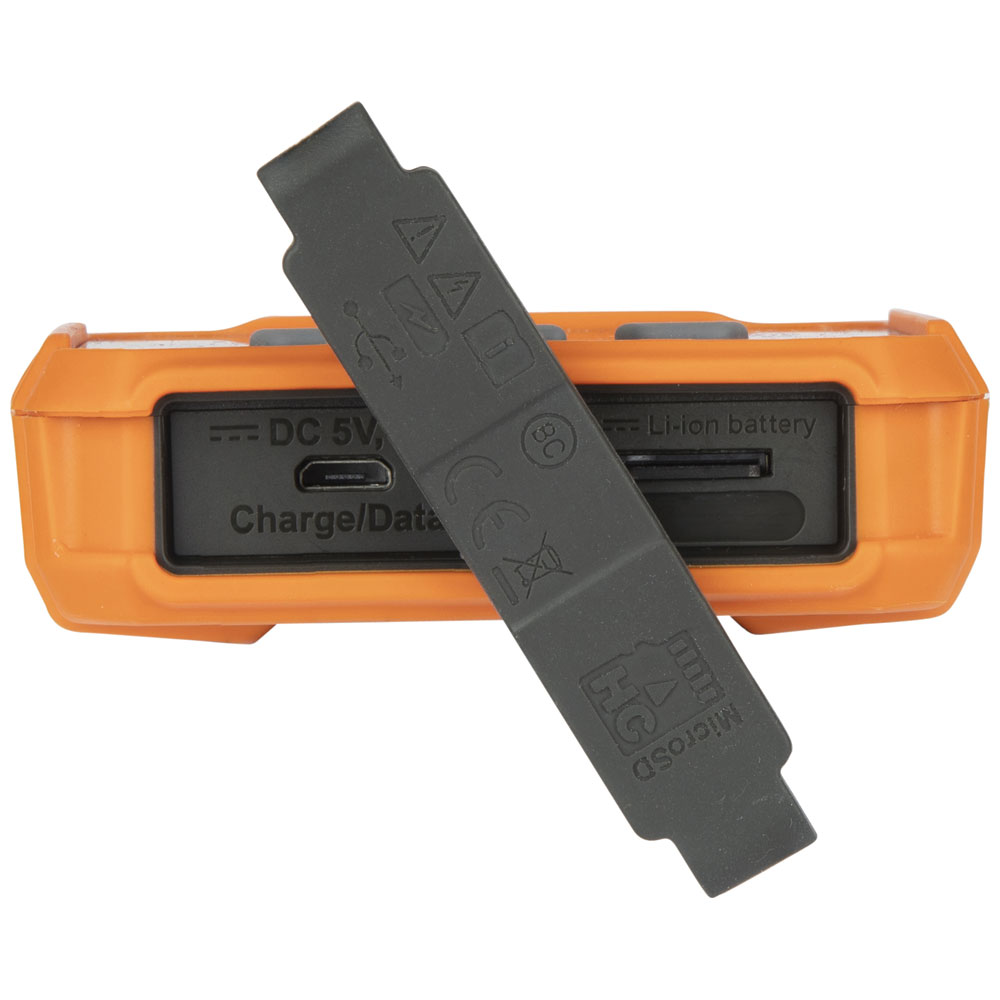

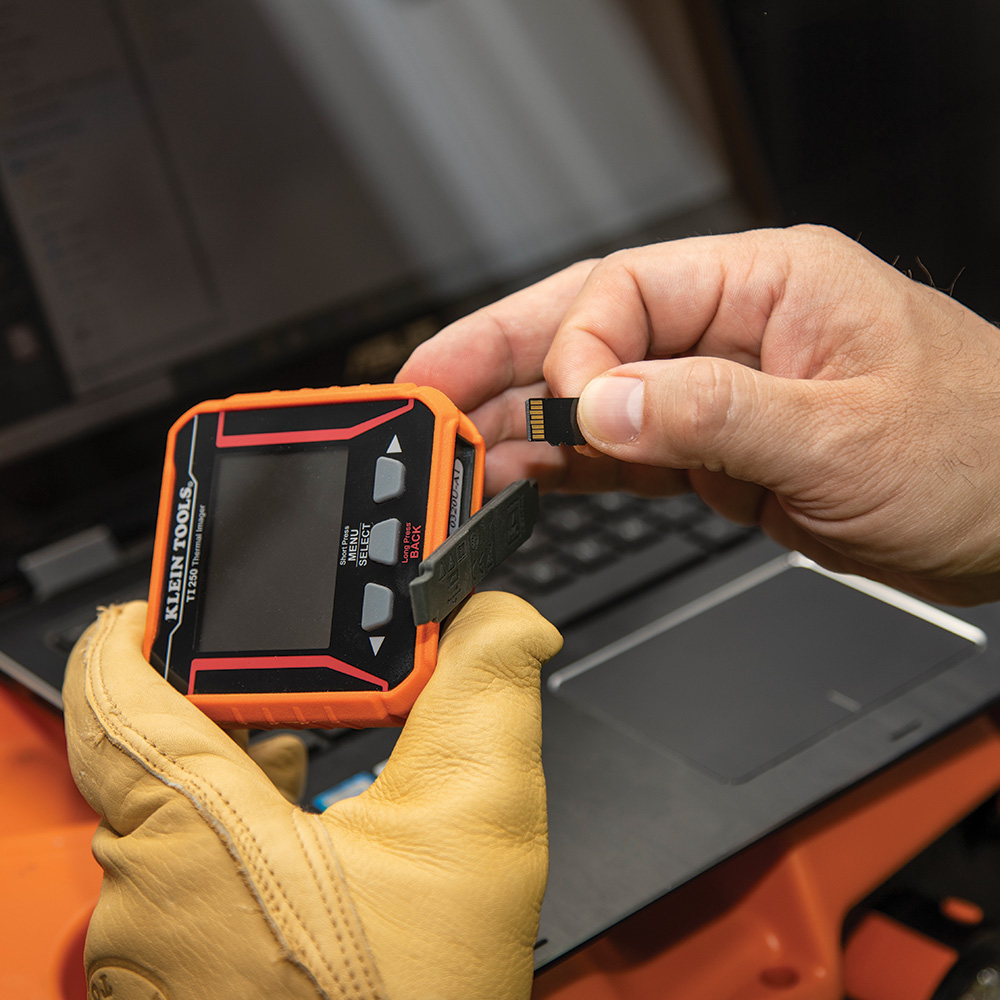

- Optional microSD® card slot for image storage (card sold separately)
Professional Installation Requirements
- No professional installation required; however, users should read and follow all safety instructions. Not insulated for electrical shock protection; do not use on or near live electrical circuits.
Applications

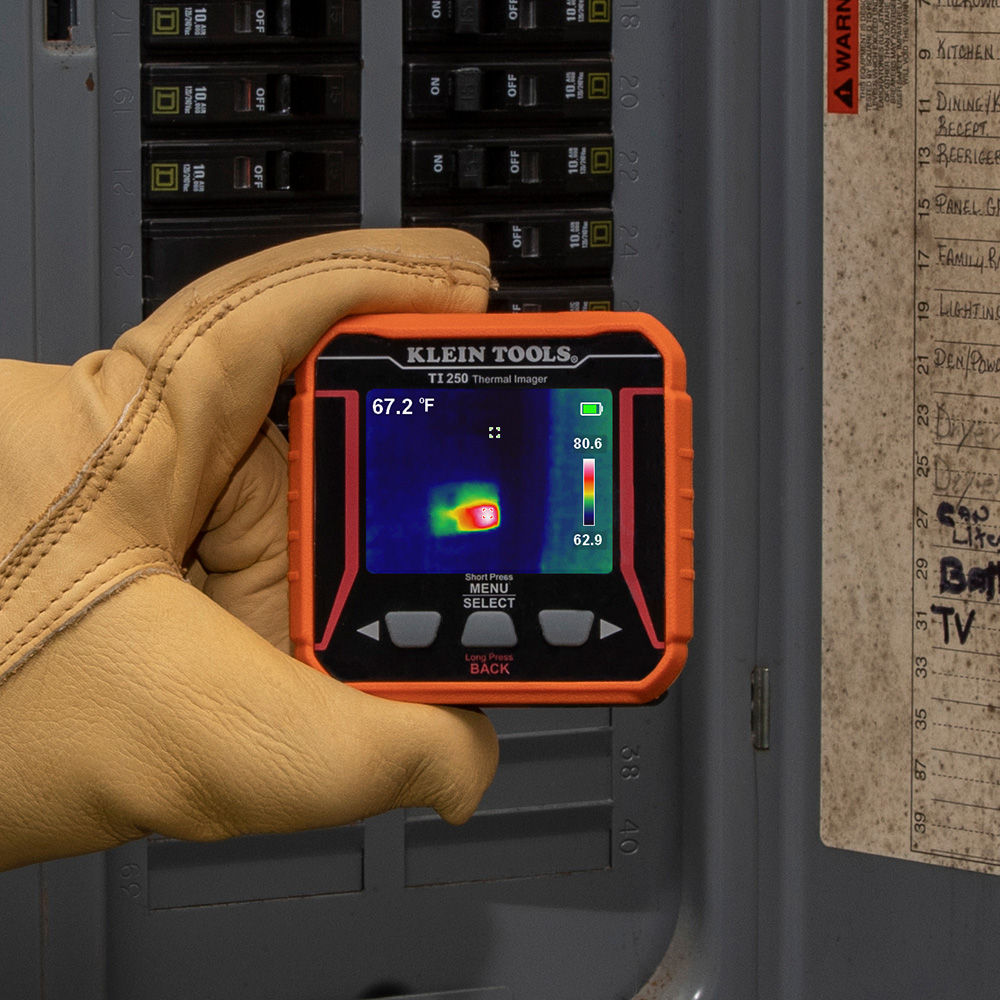

- Electrical troubleshooting to detect hot and cold spots

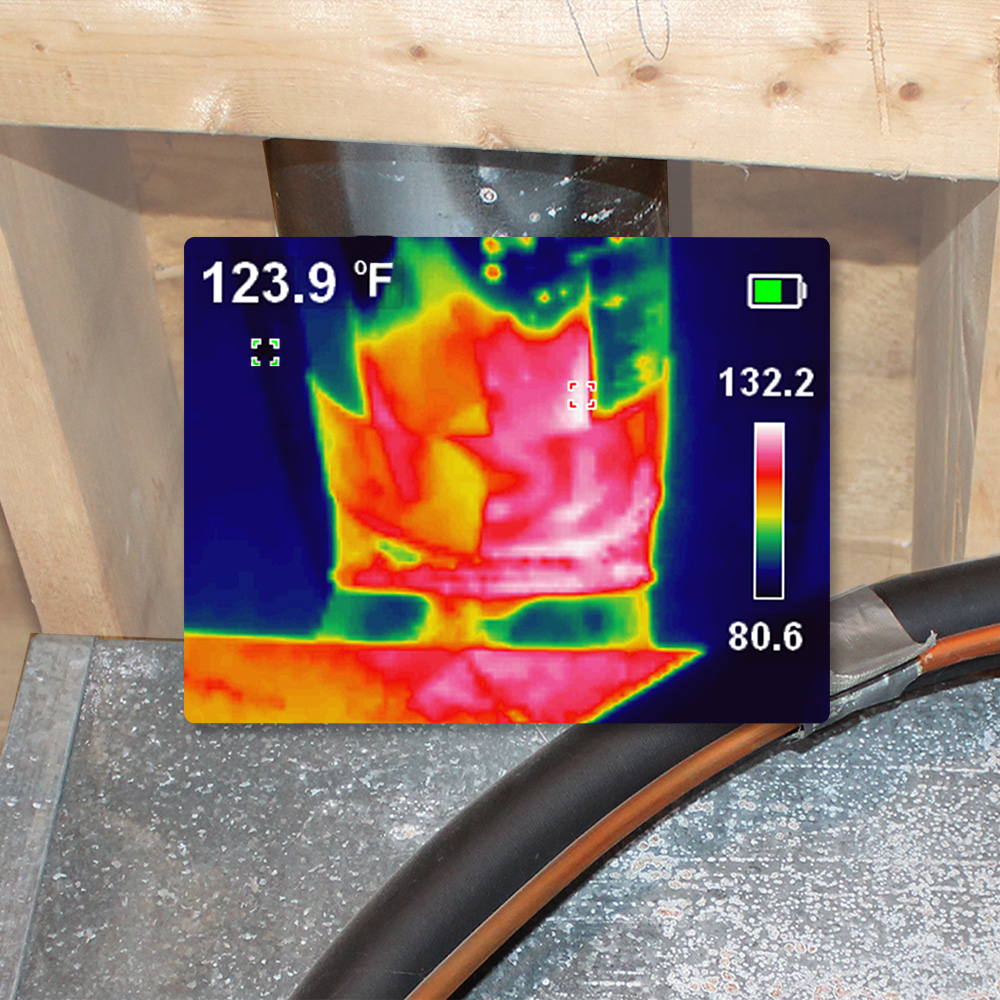

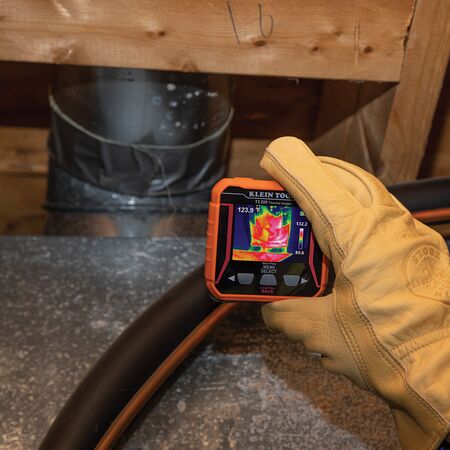

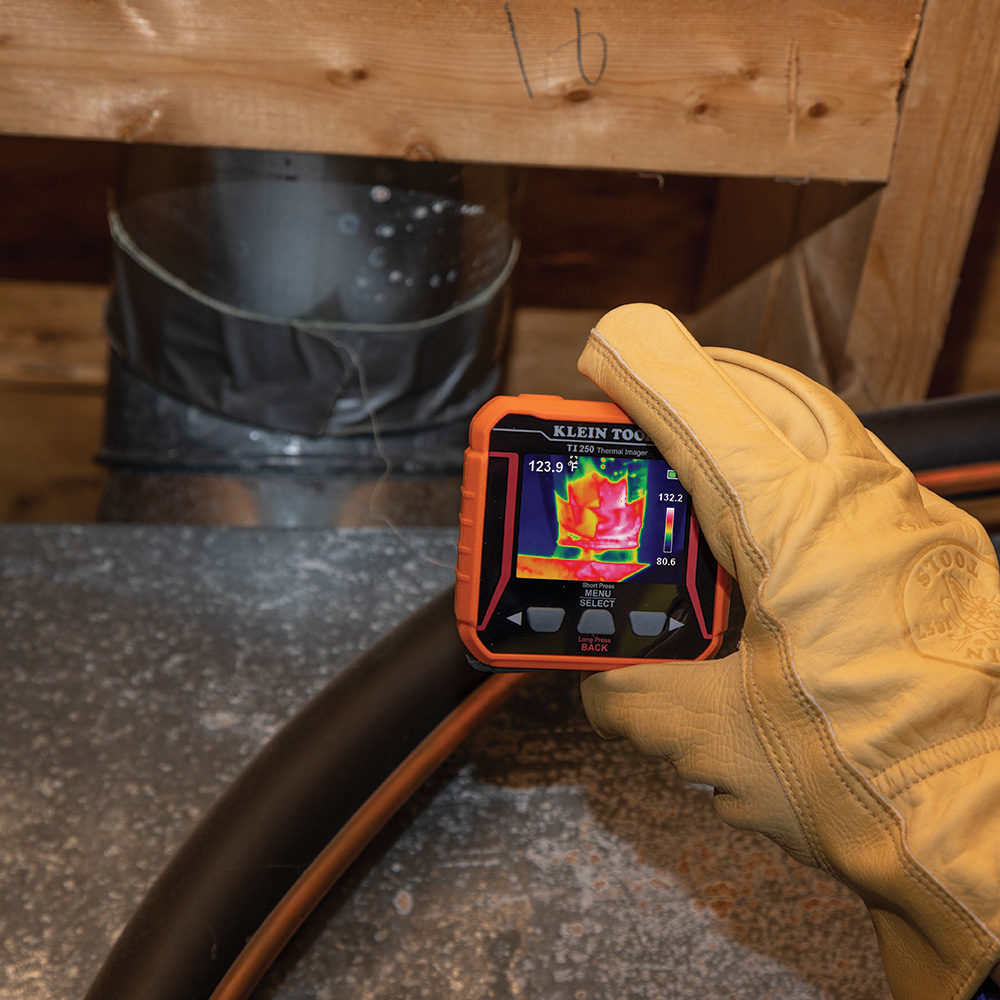

- HVAC system diagnostics

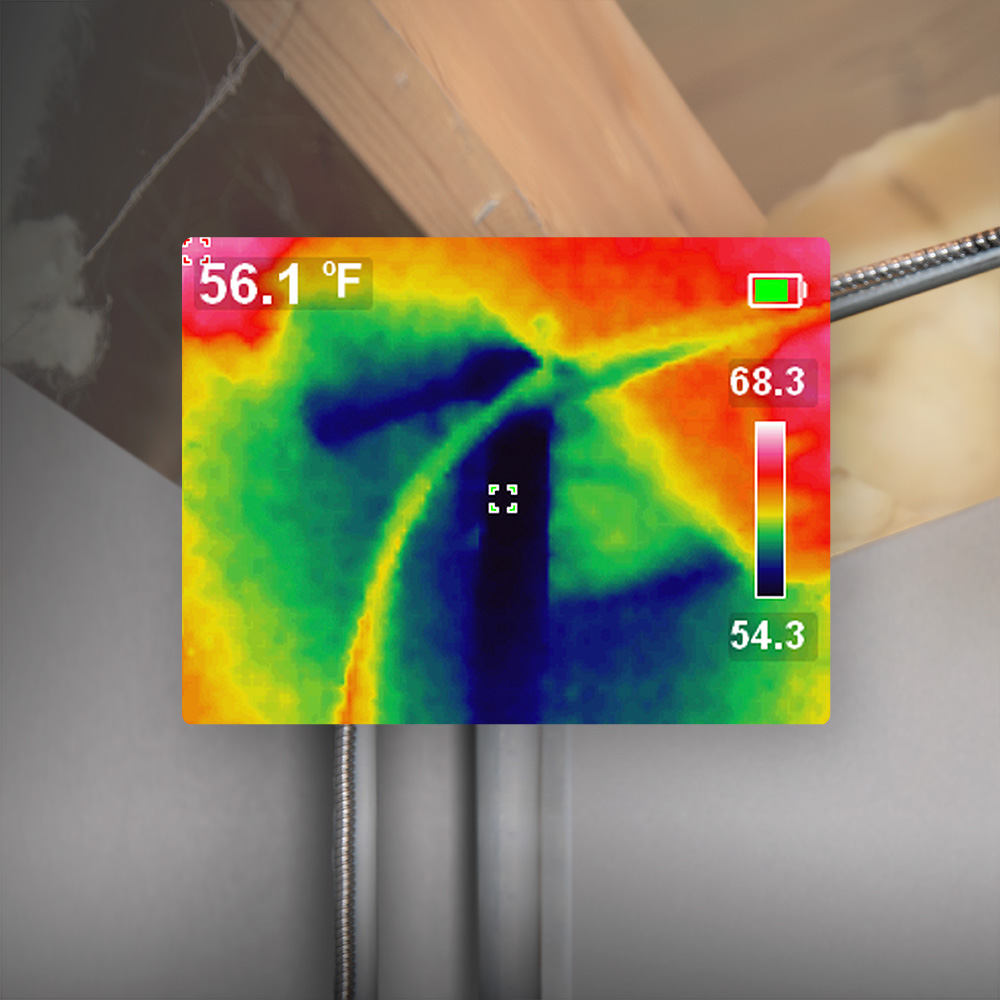

- Building inspections for insulation and moisture issues
- Mechanical equipment maintenance

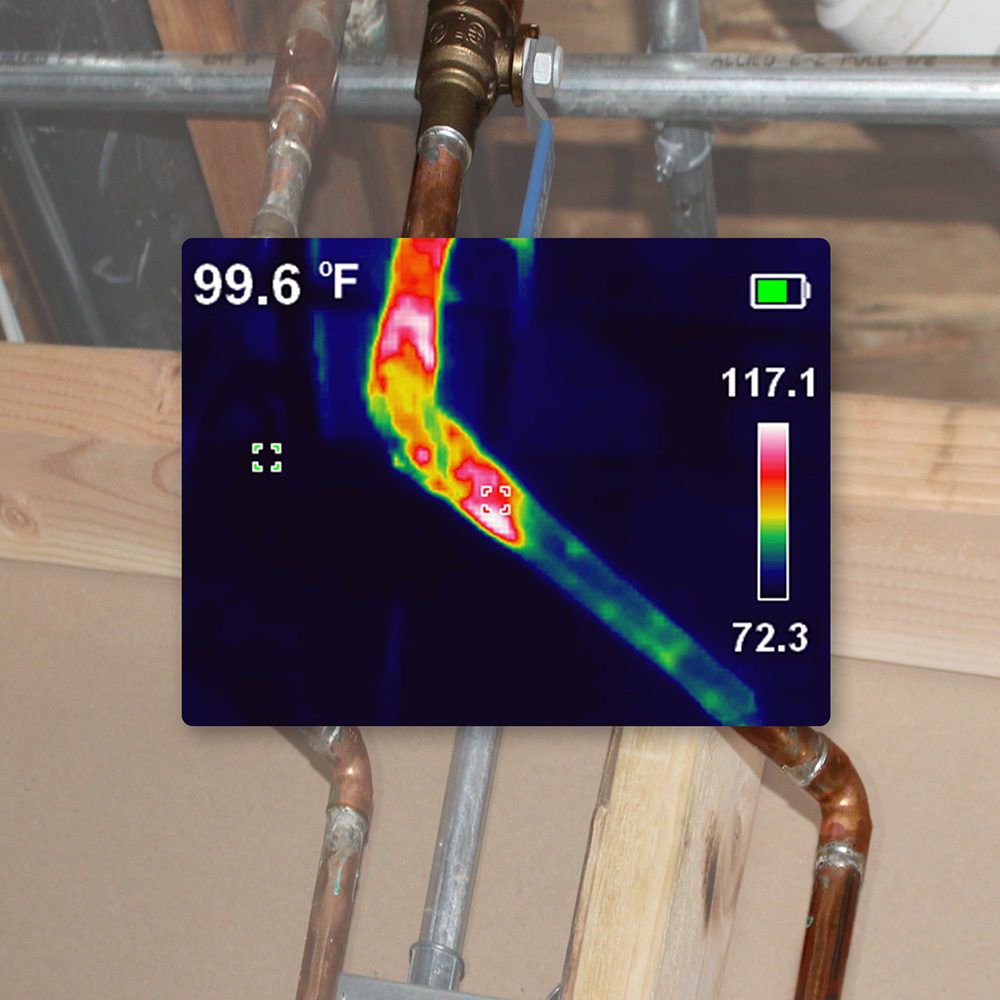

- Energy audits and leak detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Rechargeable lithium-ion battery reduces disposable battery waste
- Helps identify energy inefficiencies to improve energy conservation
- Supports preventative maintenance to extend equipment life and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster or Klein Tools for specific warranty details.
Available Now
The Wattmaster Rechargeable Thermal Imaging Camera is available for immediate purchase, ideal for professionals and technicians in electrical, HVAC, and building inspection fields.
