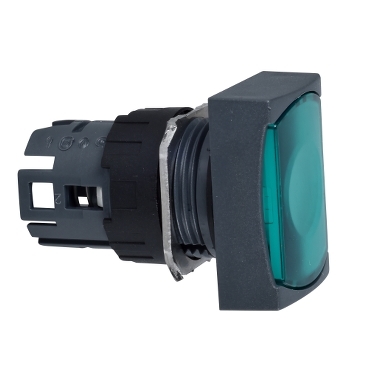

Rectangular Illuminated PUSHBU | Green Flush Actuator | Integral LED | IP40 Rated | @Each of 1 | by Clipsal
The Rectangular Illuminated PUSHBU is a versatile push button designed for industrial control panels and automation systems. Featuring a green flush actuator for clear status indication and integral LED illumination for enhanced visibility, this button operates on 12–24V AC/DC. Its compact 16mm mounting diameter and spring return mechanism make it ideal for various applications, ensuring reliable performance in machinery operation stations and electrical control cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rectangular Illuminated PUSHBU | Green Flush Actuator | Integral LED | IP40 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB6DW3
Alternatively Known As: Clipsal illuminated push button, Harmony XB6 pushbutton, SCHZB6DW3, green rectangular push button, Clipsal control button
Technical Specifications
- Actuator type: Rectangular flush, green
- Illumination: Integral LED
- Voltage: 12–24V AC/DC
- Mounting diameter: 16mm
- Operation: Spring return (momentary)
- Marking: Unmarked
- Front bezel material: Plastic
- Ingress protection: IP40 (front face)
- Dimensions (H x L x W): 24mm x 35mm x 18mm
- Weight: 0.1 kg
Key Features
- Rectangular illuminated push button head
- Green flush actuator for clear status indication
- 16mm mounting diameter for compact installations
- Integral LED illumination for enhanced visibility
- Spring return mechanism for momentary operation
- Unmarked actuator for flexible labeling
- Suitable for 12–24V AC/DC operation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation stations
- Automation systems
- Electrical control cabinets
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs.
- Long-life LED minimizes maintenance and waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB6 Rectangular Illuminated Push Button Head SCHZB6DW3 is available for immediate purchase. Ideal for industrial control panels and automation systems.
