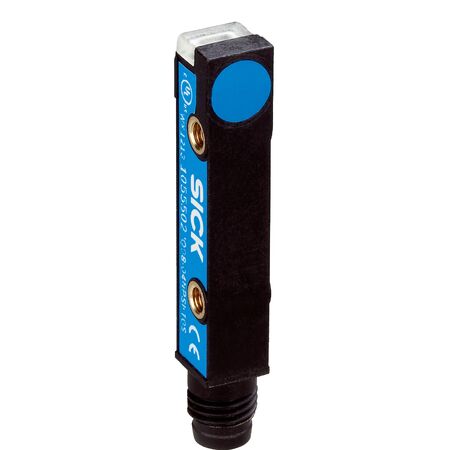

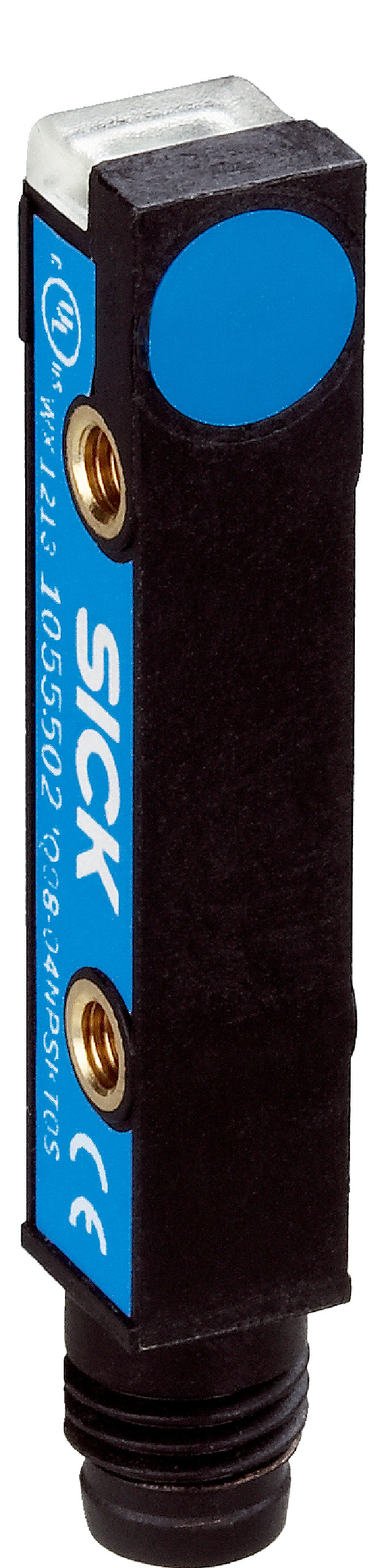

Rectangular Inductive Proximity Sensor | 4mm Sensing Range | IP67 & IP68 Rated | 2000Hz Switching Frequency | by SICK
The Rectangular Inductive Proximity Sensor is designed for industrial automation, featuring a 4mm sensing range and a high switching frequency of 2,000 Hz. With an IP67 and IP68 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 2,000 Hz
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Output function: Normally Open (NO), PNP switching output
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67 and IP68
- Connection type: Cable with M8, 3-pin connector, 0.26 m length
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10%
- No load current: 10 mA
- Continuous current Ia: ≤ 200 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Housing material: Plastic, VISTAL®
- Cable material: PVC, diameter 2.9 mm
- Short-circuit and power-up pulse protection included
- Operating temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 40mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with compact dimensions 8 mm x 40 mm x 8 mm
- Non-flush installation type for versatile mounting
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 2,000 Hz for fast response
- PNP switching output with normally open (NO) function
- IP67 and IP68 rated enclosure for dust and water resistance
- Shock and vibration resistant up to 30 g and 10-55 Hz
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and positioning systems
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP67/IP68 rated housing reduces replacement frequency and electronic waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes downtime and resource use in industrial settings
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IQ08-04NPSKRDSS15 proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
