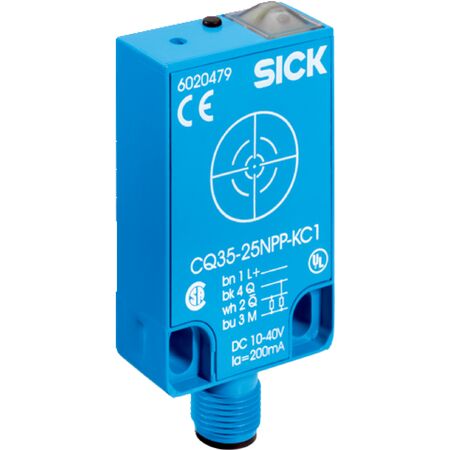

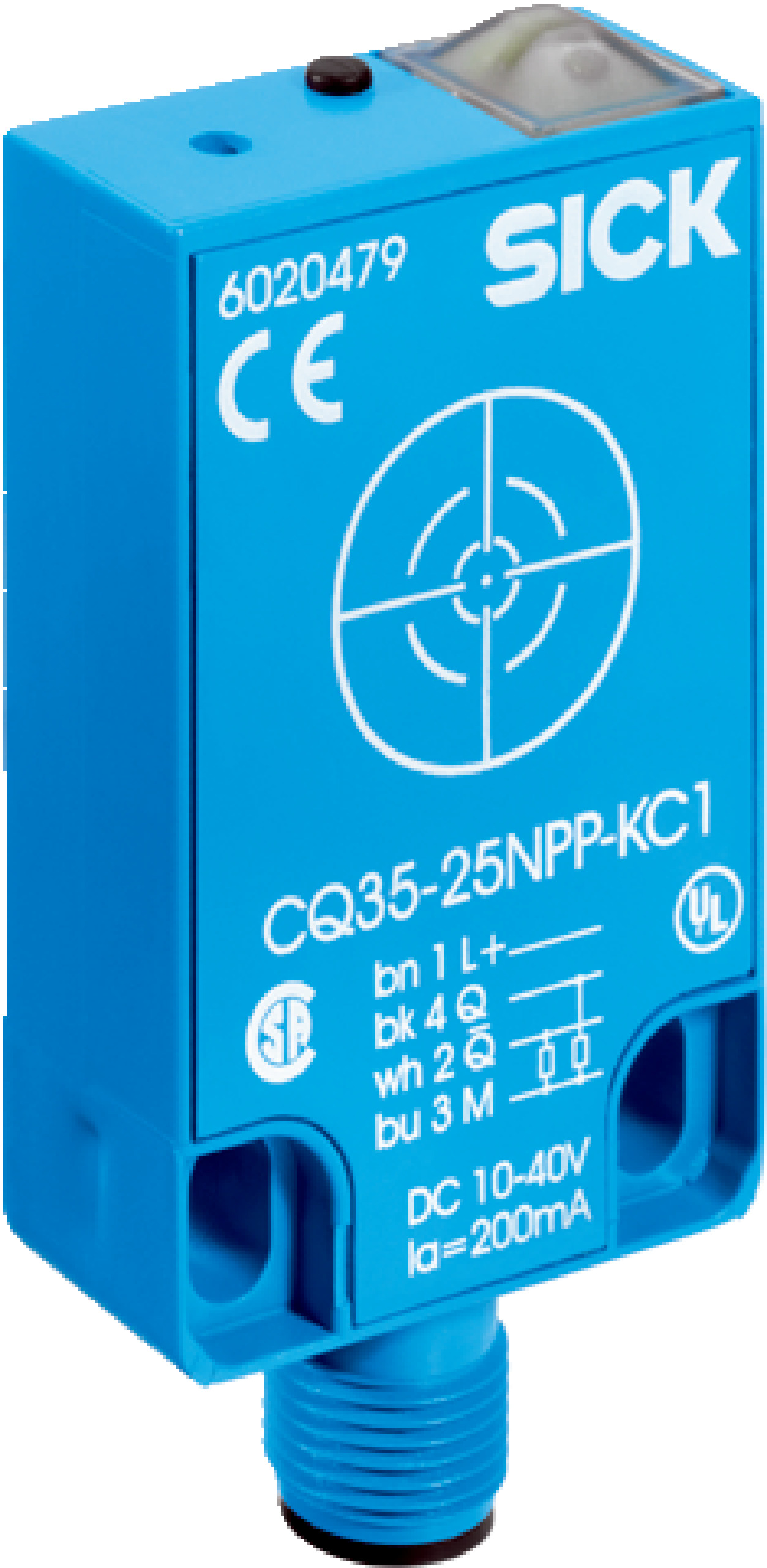

Rectangular Inductive Proximity Sensor CQ35 | IP67 Rated | 4mm to 25mm Sensing Range | PNP Output | by SICK
The CQ35-25NPP-KC1 proximity sensor is designed for industrial automation, featuring a robust IP67 rating and a sensing range of 4mm to 25mm. With a PNP complementary switching output and high switching frequency of 50 Hz, it's perfect for object detection and safety monitoring in manufacturing processes. Built to withstand harsh environments, this sensor ensures reliable performance and energy-efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 10 mA
- Voltage drop: ≤ 2.5 V DC
- Switching frequency: 50 Hz
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Connection type: Male connector M12, 4-pin
- Electrical wiring: DC 4-wire
- Enclosure rating: IP67
- Housing material: Plastic (PC)
- Sensing face material: Plastic
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Time delay before availability: ≤ 100 ms
- Adjustment: Sensitivity potentiometer (270°)
- Short-circuit and power-up pulse protection included
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 69.5mm x 15mm x 35mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 protection rating
- Sensing range from 4 mm to 25 mm with safe sensing range of 18 mm
- Non-flush installation type
- PNP complementary switching output with DC 4-wire electrical wiring
- Adjustment potentiometer for sensitivity (270°)
- Male connector M12, 4-pin connection type
- High switching frequency of 50 Hz
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor calibration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption (10 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CQ35-25NPP-KC1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
