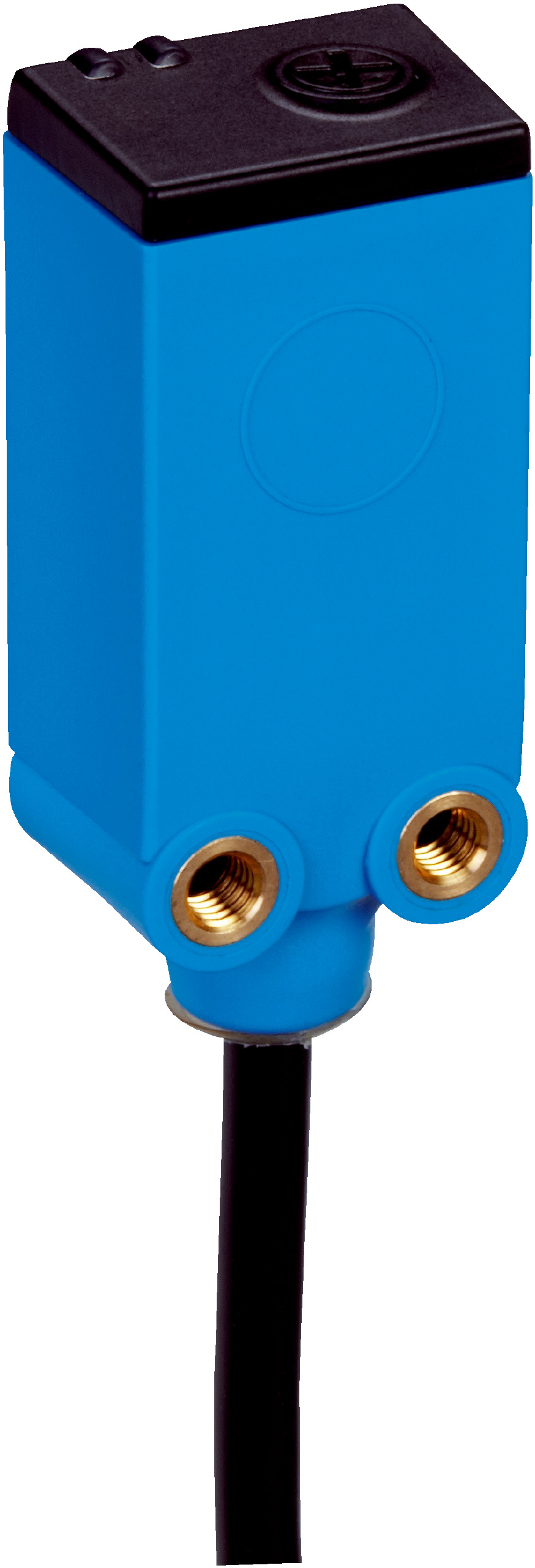

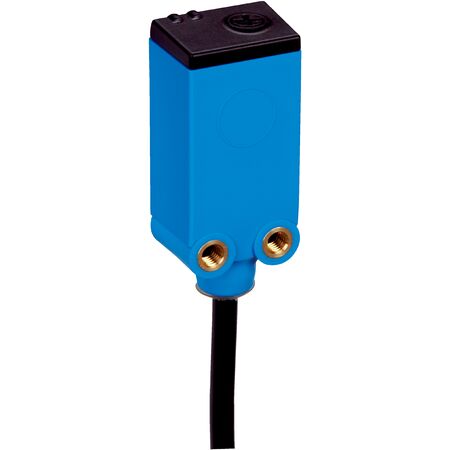

Rectangular Inductive Proximity Sensor CQ4-08ENOKP1 | IP67 Rated | NPN Normally Closed Output | 100 Hz Switching Frequency | by SICK
The CQ4-08ENOKP1 proximity sensor is designed for industrial automation, featuring a robust IP67 enclosure and a high switching frequency of 100 Hz. With a sensing range of 1 mm to 8 mm and NPN normally closed output, it's perfect for object detection and safety monitoring in various applications. Built to withstand harsh environments, this sensor ensures reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V DC
- Current consumption: 12 mA
- Switching frequency: 100 Hz
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Adjustment: Sensitivity potentiometer (5 turns)
- Enclosure rating: IP67
- Cable material: PVC
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -20 °C to +75 °C
- Housing material: Plastic, ABS
- Sensing face material: Plastic
- Short-circuit and power-up pulse protection included
- MTTFD: 1,344 years
- Mission time: 20 years
- Dimensions (H x L x W): 39.5mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 enclosure rating for robust protection
- Sensing range from 1 mm to 8 mm with safe sensing range of 5.76 mm
- NPN switching output with normally closed (NC) function
- High switching frequency of 100 Hz
- Cable with M8, 3-pin connector, 0.3 m length
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor setup to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-flush and flush installation environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with 12 mA current draw
- Robust housing protects against environmental damage, extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CQ4-08ENOKP1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
