Rectangular Inductive Proximity Sensor | IP67 Rated | PNP Output | 100 Hz Switching Frequency | by SICK

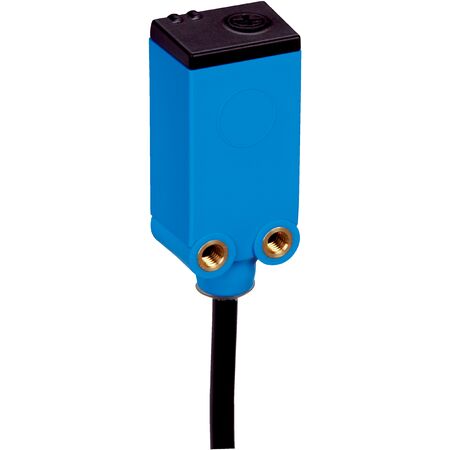

The CQ4-08EPOKU1 proximity sensor is designed for industrial automation, featuring an IP67 enclosure for robust protection and a PNP output with a 100 Hz switching frequency. Ideal for non-contact sensing in manufacturing and safety control systems, this sensor ensures reliable object detection with a sensing range of 1 mm to 8 mm, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Switching output: PNP, normally closed (NC)
- Switching frequency: 100 Hz
- Voltage drop: ≤ 2.5 V DC
- Time delay before availability: ≤ 200 ms
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 20%
- Cable: 3-wire, 2 m PVC
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Operating temperature: -20 °C to +75 °C
- Storage temperature: -40 °C to +85 °C
- Housing material: Plastic ABS
- Enclosure rating: IP67
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 39.5mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 enclosure rating for robust protection
- Sensing range from 1 mm to 8 mm with safe sensing range of 5.76 mm
- Non-flush and flush installation types available
- Switching frequency of 100 Hz with PNP switching output
- 3-wire DC electrical wiring with potentiometer sensitivity adjustment
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and sensor positioning for optimal performance and safety.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Non-contact sensing in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Low current consumption (12 mA) contributes to energy efficiency
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CQ4-08EPOKU1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
