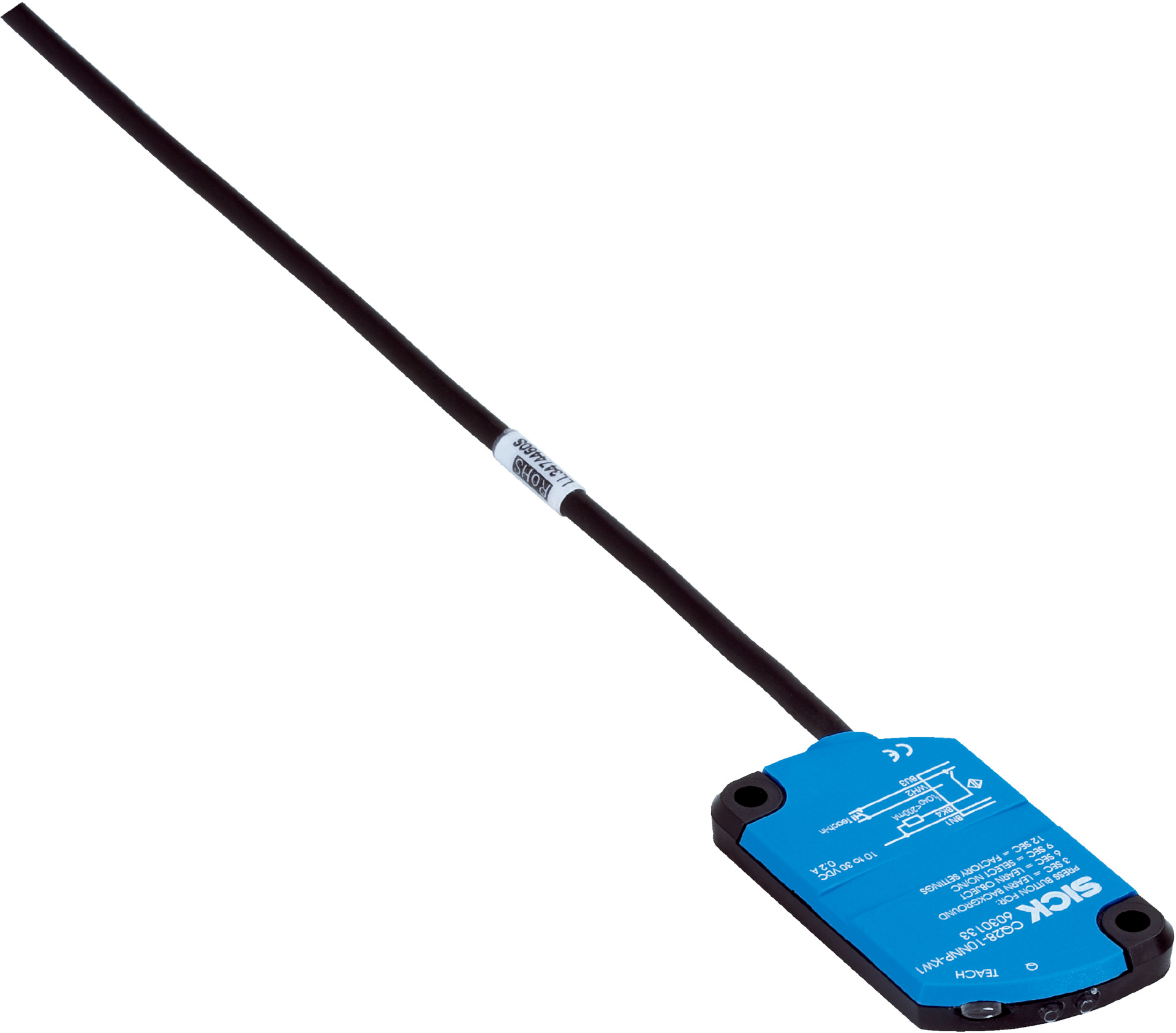

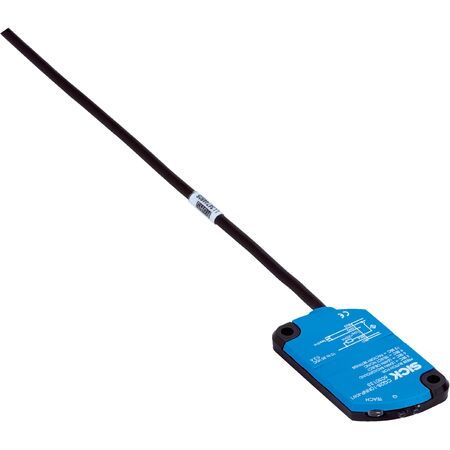

Rectangular Inductive Proximity Sensor CQ28-10NPO-KW1 | IP68 Rated | 1mm to 10mm Sensing Range | PNP Normally Closed | by SICK
The CQ28-10NPO-KW1 proximity sensor is designed for industrial automation, featuring an IP68 rated housing for robust protection and a sensing range from 1mm to 10mm. With a PNP normally closed output and short-circuit protection, it's perfect for object detection and safety monitoring in manufacturing processes. Built to withstand harsh environments, this sensor operates effectively in temperatures ranging from -20°C to +85°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Switching frequency: 10 Hz
- Voltage drop: ≤ 2.5 V DC
- Switching output: PNP, normally closed (NC)
- Cable: 4-wire, 2 m PVC cable
- Short-circuit protection included
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Operating temperature: -20°C to +85°C
- Storage temperature: -40°C to +85°C
- Housing material: Plastic, PBT
- Sensing face material: Plastic
- Reproducibility: ≤ 5%
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 46mm x 5.5mm x 28mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 enclosure rating for robust protection
- Sensing range from 1 mm to 10 mm with safe sensing range of 7.2 mm
- Non-flush installation type with PNP normally closed switching output
- 4-wire DC connection with 2 m cable
- Short-circuit protection and shock/vibration resistance
- Operating temperature range from -20°C to +85°C
- Adjustment via teach-in button for sensitivity
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and sensor positioning for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP68 rated housing reduces environmental damage and extends product life
- Low power consumption with efficient DC 4-wire operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CQ28-10NPO-KW1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
