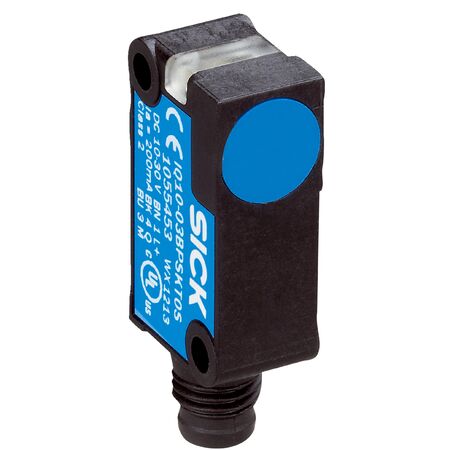

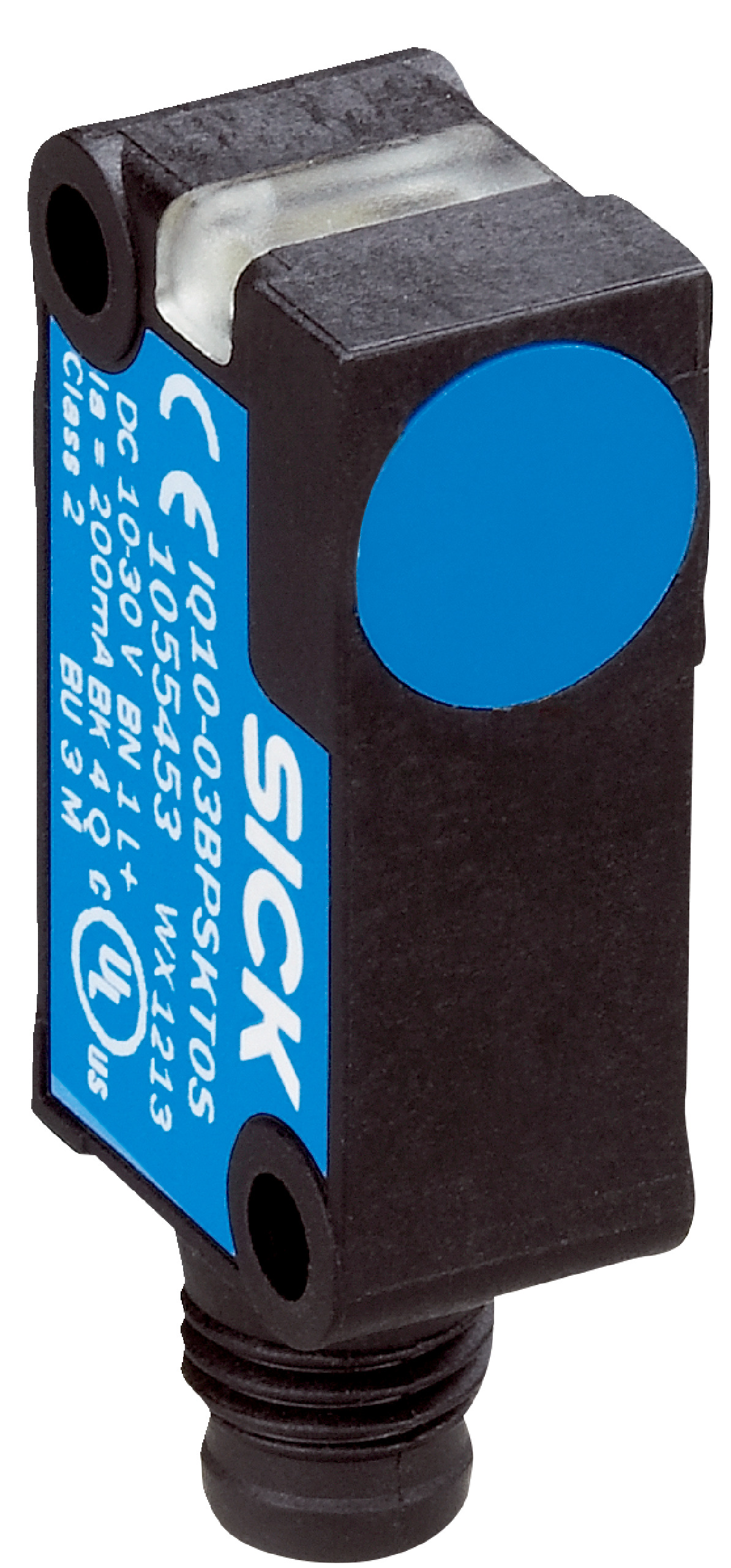

Rectangular Inductive Proximity Sensor | IP68 Rated | 6mm Sensing Range | 2000Hz Switching Frequency | by SICK
The Rectangular Inductive Proximity Sensor is designed for industrial automation, featuring a robust IP68 rated enclosure and a 6mm sensing range. With a high switching frequency of 2,000 Hz, it ensures fast and reliable object detection, making it ideal for machine safety and control systems. Built for durability and low power consumption, this sensor is perfect for manufacturing process monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Sensing range (Sn): 6 mm
- Safe sensing range (Sa): 4.86 mm
- Switching frequency: 2,000 Hz
- Output function: Normally Open (NO), PNP switching output
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Cable with connector: M8, 3-pin, 0.2 m length
- Ripple: ≤ 10%
- Voltage drop: ≤ 3 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 10 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: Ø 3.7 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +75 °C
- Housing and sensing face material: Plastic, VISTAL®
- Tightening torque max: ≤ 1 Nm
- Dimensions (H x L x W): 28mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 rated enclosure for robust protection
- Non-flush installation type with 6 mm sensing range
- High switching frequency of 2,000 Hz for fast response
- PNP switching output with normally open function
- Cable with M8, 3-pin connector, 0.2 m length
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor placement according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 housing reduces environmental damage and extends product life
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes waste through long service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IQ10-06NPSKR8SS22 proximity sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
