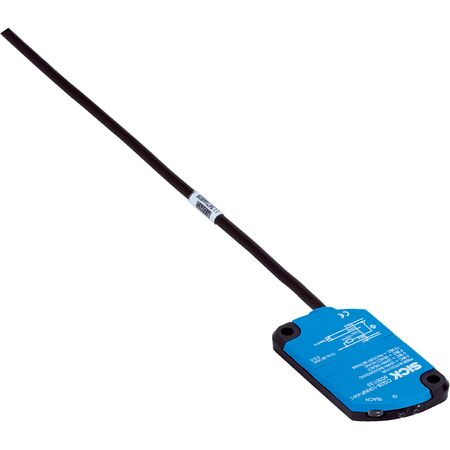

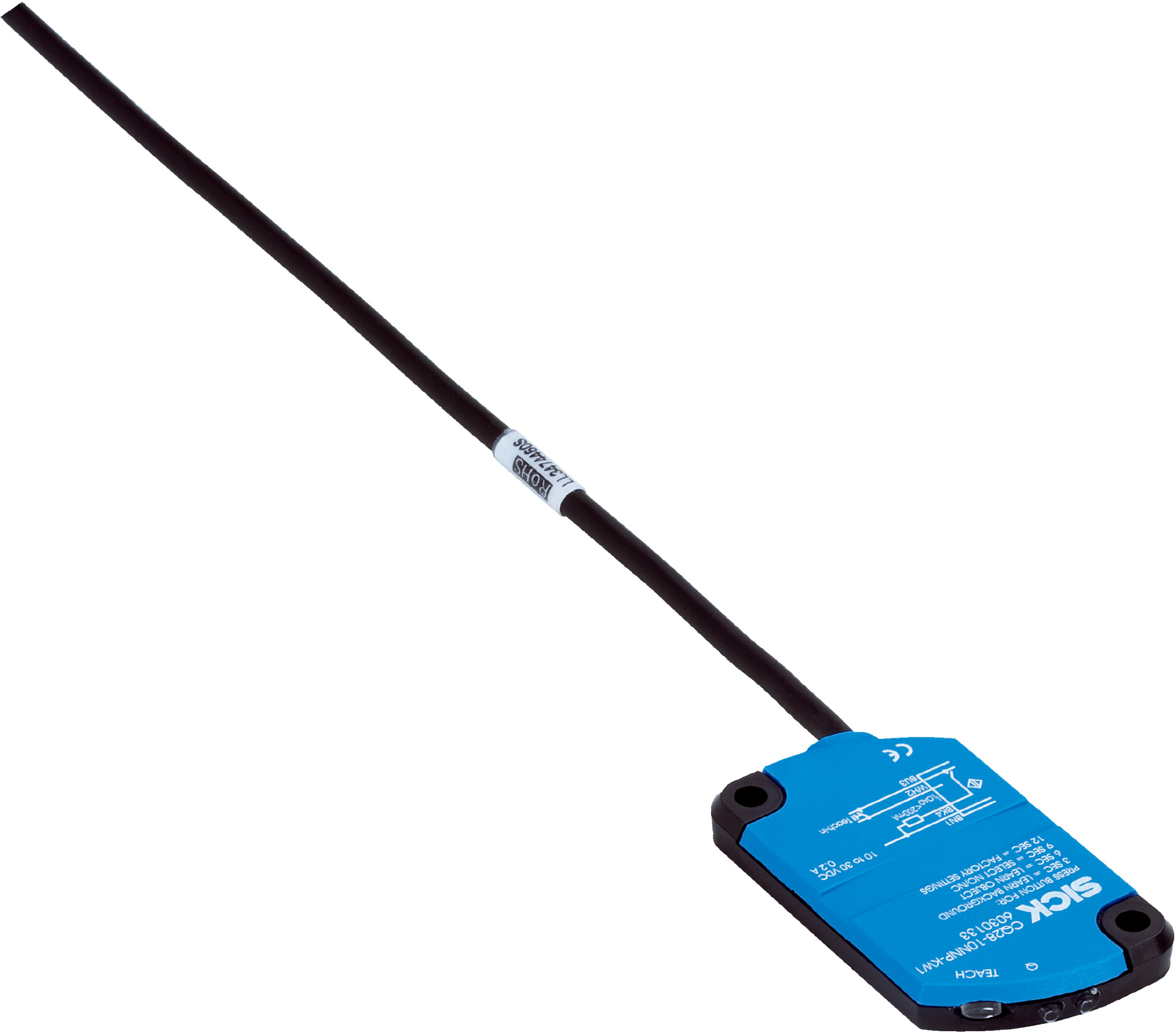

Rectangular Inductive Proximity Sensor CQ28-10NPP-KU1 | IP68 Rated | Non-Flush Installation | PNP Output | by SICK
The CQ28-10NPP-KU1 proximity sensor is designed for industrial automation, featuring a robust IP68 enclosure and a sensing range of 1 mm to 10 mm. With a PNP output and a switching frequency of 10 Hz, it's perfect for object detection and safety monitoring in harsh environments. Built for reliability, this sensor operates in temperatures from -20°C to +85°C, ensuring optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Switching output: PNP, NC or NO function
- Switching frequency: 10 Hz
- Voltage drop: ≤ 2.5 V DC
- Cable: 3-wire, 2 m PUR cable, conductor size 0.34 mm²
- Short-circuit protection included
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Ambient operating temperature: -20°C to +85°C
- Housing material: Plastic PBT
- Enclosure rating: IP68
- Dimensions (H x L x W): 46mm x 5.5mm x 28mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 enclosure rating for robust protection
- Sensing range from 1 mm to 10 mm with safe sensing range of 7.2 mm
- Non-flush installation type suitable for various mounting conditions
- Switching frequency of 10 Hz with PNP switching output
- Cable connection with 3-wire, 2 m PUR cable
- Short-circuit protection and shock/vibration resistance
- Operating temperature range from -20°C to +85°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-contact sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 rated housing reduces need for frequent replacements
- Low power consumption with 12 mA current draw
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CQ28-10NPP-KU1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
