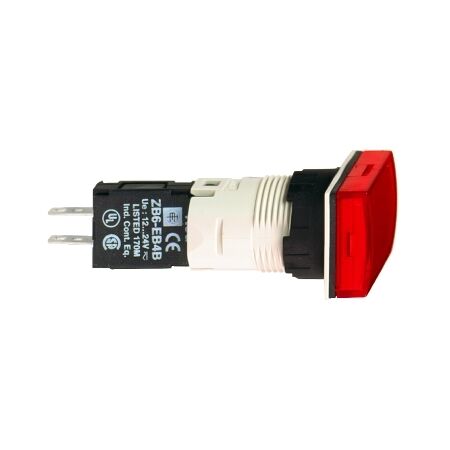

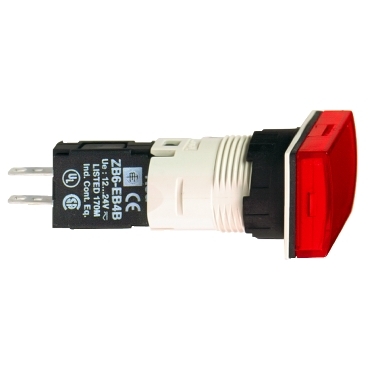

Rectangular Pilot Light | 24V AC/DC | LED Illumination | IP20 Rated | @Pack of 1 | by Clipsal
The Rectangular Pilot Light is designed for clear status indication in industrial control panels and switchboards. With a compact panel mount design, it features high visibility LED illumination and is rated IP20 for protection against solid objects. Ideal for machinery status indication, this durable light operates within a temperature range of -25°C to +70°C, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rectangular Pilot Light | 24V AC/DC | LED Illumination | IP20 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXB6DV4BB
Alternatively Known As: Panel Indicator Light, Control Panel Pilot Light, Industrial Indicator Lamp, SCHXB6DV4BB Pilot Light
Technical Specifications
- Type: Rectangular pilot light
- Mounting: Panel mount
- Voltage: 24V AC/DC
- Lens color: Clear/White
- Illumination: LED
- Ingress protection: IP20
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Rectangular pilot light for clear status indication
- Compact design suitable for panel mounting
- High visibility illumination
- Durable construction for industrial environments
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and proper operation.
Applications
- Industrial control panels
- Switchboards
- Electrical enclosures
- Machinery status indication
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low energy consumption reduces operational costs and environmental impact.
- Long operational life minimizes waste and replacement frequency.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Rectangular Pilot Light DIAM 1 SCHXB6DV4BB is available for immediate purchase. Ideal for use in industrial control panels, switchboards, and machinery status indication.
