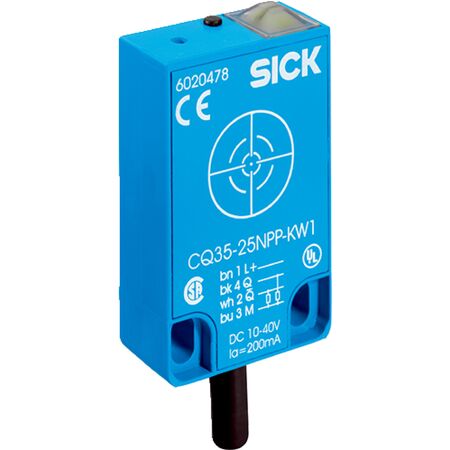

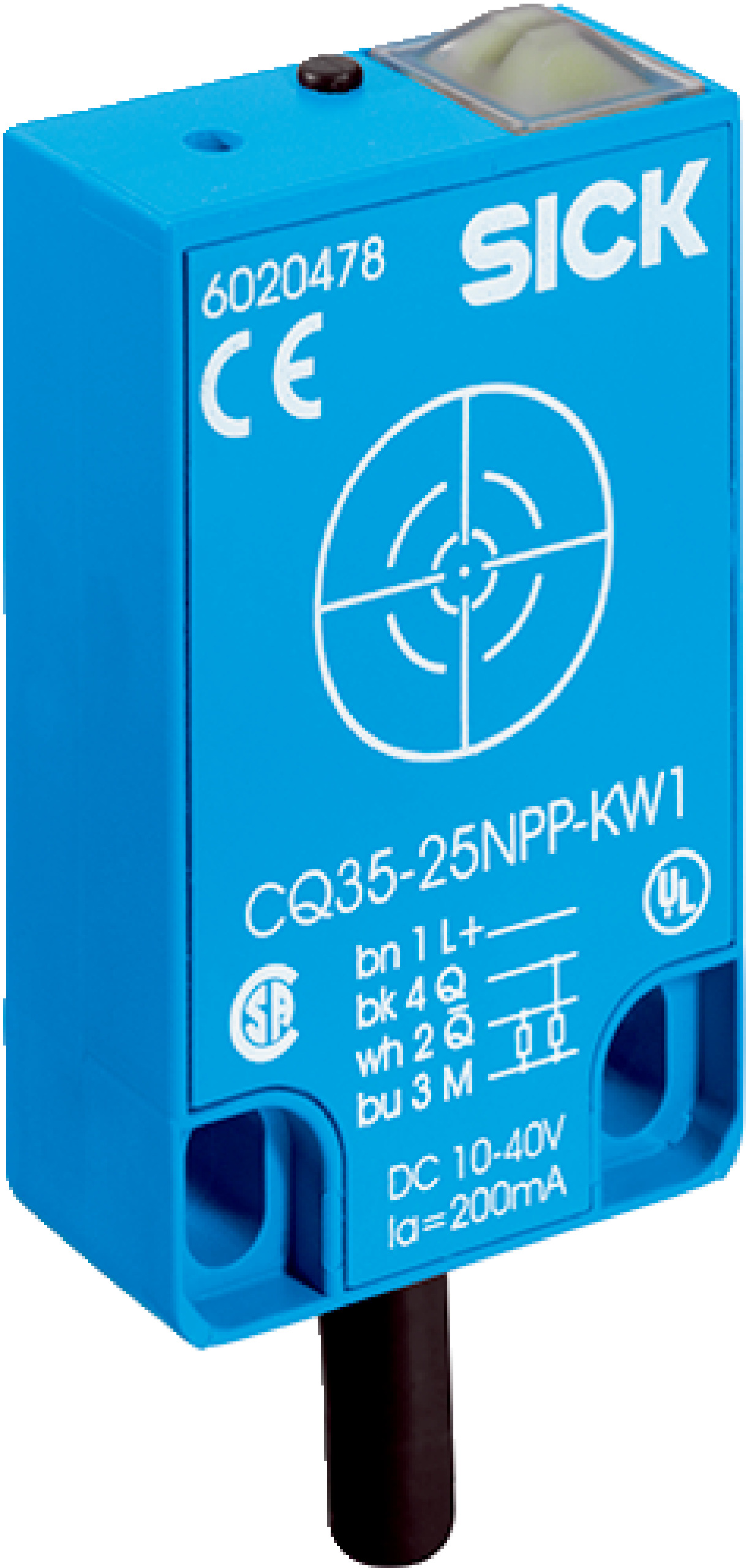

Rectangular PNP Proximity Sensor | IP67 Enclosure | 4mm to 25mm Sensing Range | 50Hz Switching Frequency | by SICK
The Rectangular PNP Proximity Sensor is designed for industrial automation, featuring a robust IP67 enclosure and a sensing range of 4mm to 25mm. With a high switching frequency of 50Hz and a durable plastic housing, this sensor is perfect for object detection and safety monitoring in manufacturing processes. Its efficient design ensures low power consumption, making it an ideal choice for long-term applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 10 mA
- Voltage drop: ≤ 2.5 V DC
- Switching frequency: 50 Hz
- Sensing range Sn: 4 mm to 25 mm
- Safe sensing range Sa: 18 mm
- Output function: Complementary PNP
- Electrical wiring: DC 4-wire
- Cable length: 2 m, PVC material
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Plastic (PC)
- Enclosure rating: IP67
- Dimensions (H x L x W): 69.5mm x 15mm x 35mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP67 enclosure rating for robust protection
- Sensing range from 4 mm to 25 mm with safe sensing range of 18 mm
- Non-flush installation type with PNP complementary switching output
- 4-wire DC electrical wiring with 2 m cable connection
- Adjustment potentiometer with 270° sensitivity for fine tuning
- High switching frequency of 50 Hz
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor adjustment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient DC 4-wire design
- Durable IP67 rated housing reduces waste by extending product life
- Shock and vibration resistance enhances longevity and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CQ35-25NPP-KW1 sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
