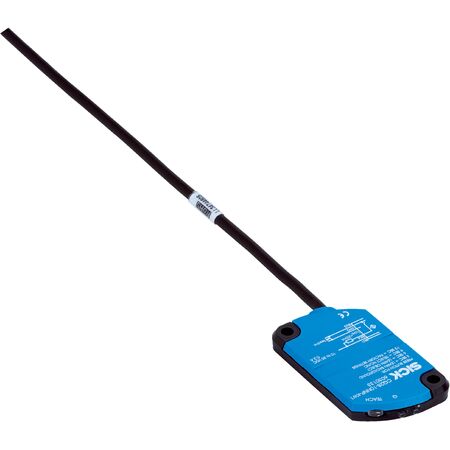

Rectangular PNP Proximity Sensor | IP68 Enclosure | 10 Hz Switching Frequency | Non-Flush Installation | by SICK
The Rectangular PNP Proximity Sensor is designed for industrial automation, featuring an IP68 enclosure for robust protection and a high switching frequency of 10 Hz. With a sensing range of 1 mm to 10 mm, it's perfect for object detection and position sensing in manufacturing lines, ensuring reliable performance even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching frequency: 10 Hz
- Switching output: PNP, NC or NO function
- Connection: Cable with M12 male connector, 4-pin, 0.3 m
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -20 °C to +85 °C
- Housing material: Plastic, PBT
- Sensing face material: Plastic
- Short-circuit protection: Yes
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Dimensions (H x L x W): 46mm x 5.5mm x 28mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 enclosure rating for robust protection
- Sensing range from 1 mm to 10 mm with safe sensing range of 7.2 mm
- Non-flush installation type suitable for various mounting needs
- PNP switching output with NC or NO output function
- Cable with M12 male connector, 4-pin, 0.3 m length
- High switching frequency of 10 Hz
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and secure mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-flush mounting in machinery
- Harsh environment sensing with IP68 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements, minimizing waste
- Low current consumption of 12 mA supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CQ28-10NPP-KW1S08 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
