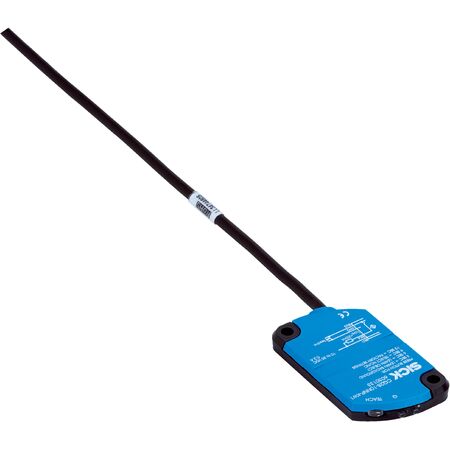

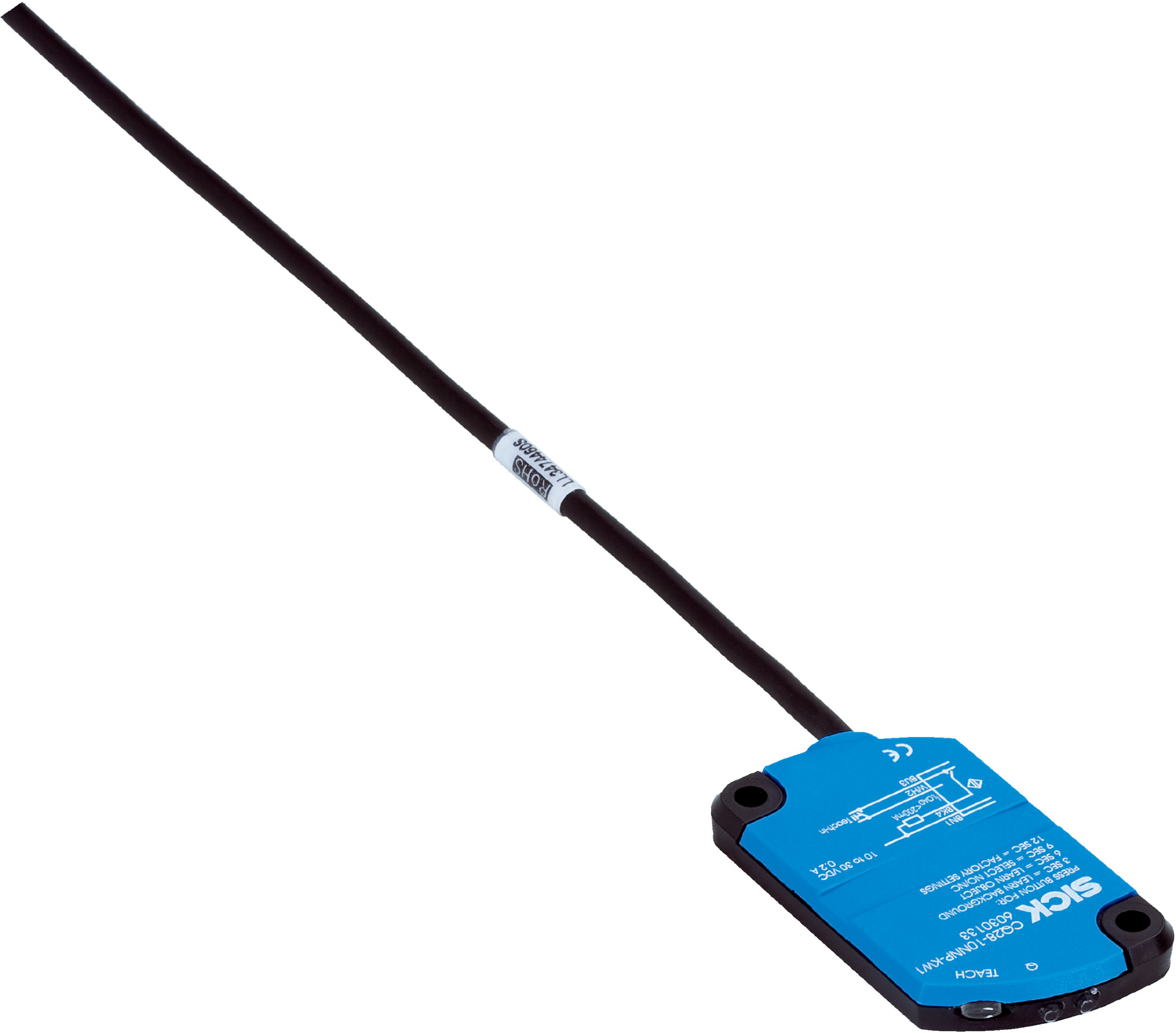

Rectangular PNP Proximity Sensor | IP68 Rated | 1mm to 10mm Sensing Range | Programmable Output | by SICK
The Rectangular PNP Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 1 mm to 10 mm and an IP68 enclosure rating. With a programmable PNP output and robust shock and vibration resistance, this sensor is perfect for non-flush mounting in machinery and equipment, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching frequency: 10 Hz
- Output type: Programmable PNP (NC or NO)
- Connection: Cable with M8, 3-pin connector, 0.3 m length
- Electrical wiring: DC 3-wire
- Short-circuit protection: Yes
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Operating temperature: -20 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Housing material: Plastic, PBT
- Sensing face material: Plastic
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Dimensions (H x L x W): 46mm x 5.5mm x 28mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 enclosure rating
- Sensing range from 1 mm to 10 mm with safe sensing range of 7.2 mm
- Non-flush installation type
- Switching frequency of 10 Hz with programmable PNP output (NC or NO)
- Cable with M8 3-pin connector, 0.3 m length
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection within 1 mm to 10 mm range
- Non-flush mounting in machinery and equipment
- Use in environments requiring IP68 rated sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 rated housing reduces need for frequent replacements
- Low current consumption (12 mA) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CQ28-10NPP-KW1S05 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
